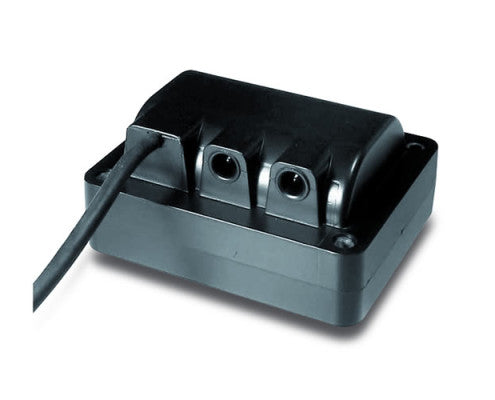

TRS 818 C - Continuous Duty Dual Outlet Transformer
Professional 8kV/18mA Continuous Duty Dual Outlet Inductive Transformer
The TRS 818 C provides continuous duty performance with 8kV output at 18mA across two outlets. Engineered for demanding applications requiring constant high-voltage supply with dual-outlet flexibility and superior thermal characteristics.
Key Technical Specifications:
-
Output Voltage: 8kV
-
Current Rating: 18mA (continuous duty optimized)
-
Operation Type: Continuous duty
-
Outlets: 2 high-voltage outlets
-
Supply Voltage: 230VAC, 50Hz
-
Supply Cable: 3 x 0.75 mm² conductors
-
Overall Length: 440mm (380mm useable length)
-
Weight: Approximately 1.8kg
-
Insulation Class: Class H windings
-
Encapsulation: Epoxy resin protection
-
Compliance: EC Approval certified
-
Mounting: Flush self-tapping screw outlets (13mm deep)
Ideal for dual-zone continuous operations, redundant systems, and applications requiring reliable 24/7 high-voltage performance across multiple outputs.
