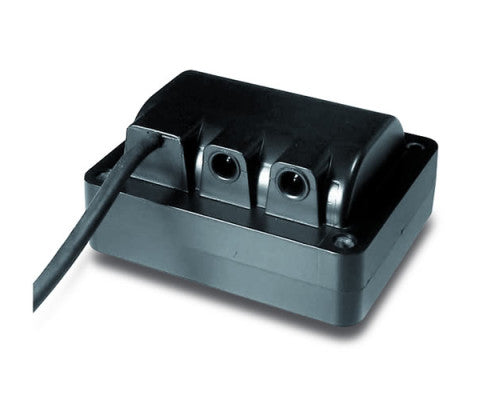

TRS 820PISO - Monoelectric Insulated Single Outlet Transformer
Premium 8kV/20mA Monoelectric Insulated Intermittent Transformer
The TRS 820PISO features advanced monoelectric insulation technology, providing superior electrical isolation and safety for critical applications. This single-outlet intermittent transformer combines 8kV/20mA performance with enhanced insulation properties.
Key Technical Specifications:
-
Output Voltage: 8kV
-
Current Rating: 20mA
-
Operation Type: Intermittent duty
-
Outlets: 1 high-voltage outlet
-
Insulation Type: Monoelectric insulated design
-
Supply Voltage: 230VAC, 50Hz
-
Supply Cable: 3 x 0.75 mm² conductors
-
Overall Length: 440mm (380mm useable length)
-
Weight: Approximately 1.8kg
-
Insulation Class: Class H windings
-
Encapsulation: Epoxy resin protection
-
Compliance: EC Approval certified
-
Mounting: Flush self-tapping screw outlet (13mm deep)
Perfect for medical equipment, laboratory instruments, and applications requiring enhanced electrical isolation and safety standards.
