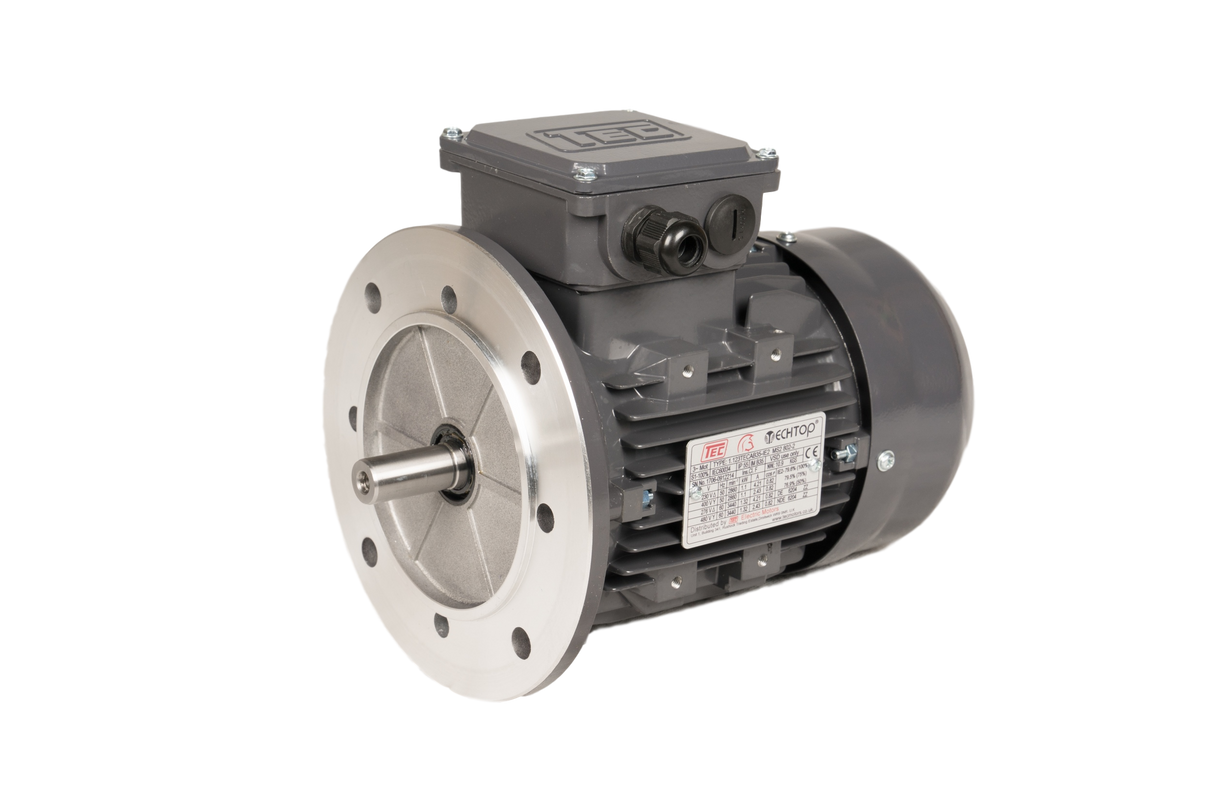

1.1kW 4 Pole 3 Phase Motor IE3 - B5 Flange Mounting
| Tec Reference | 1.143TECAB5-IE3 |
| Factory Reference | T3A 90S-4 |
| Type | 3 phase aluminium |
| Output | 1.1 |
| Rated Current | 4.48 | 2.59 |
| Rotation Speed | 1440 | 1728 |
| Efficiency 100 | 84.1 |
| Efficiency 75 | 84.2 |
| Efficiency 50 | 82.9 |
| Power Factor | 0.73 |
| Rated Torque | 7.3 |
| Tst Tn Times | 4 |
| Tmin Tn Times | 2.5 |
| Tmax Tn Times | 3.4 |
| Ist In Times | 7.1 |
| Noise | 61 |
| Net Weight | 15.1 |
| Moment Of Inertia | 0.003842 |
| Full Frame Ref | 90S-4 |
| Frame Size | 90 |
| Construction | Aluminium |
| Mounting | B5 |
| Mounting Type | Flange Mounted |
| Type Of Feet | Not Fitted |
| Insulation Class | F |
| Protection Degree | IP55 |
| Thermal Protection | PTC 130°C |
| Rotation Direction | F / R |
| Duty | S1 |
| Cable Glands | 1 - M20 x.5 |
| Cooling | IC 411 |
| Painting Color | RAL 7024 |
| Standard | IEC 60034 |
| Ambient Temperature | -20°C to +40°C |
| Frequency | 50 | 60 |
| Voltage A B | 230 | 400 |
| Voltage C D | 276 | 480 |
| Starting Method | DOL / Inverter / Soft Start |
| Efficiency Level | IE3 |
| Bearings Brand | NSK |
| Bearing Type 1 | 6205 2RS C3 |
| Bearing Type 2 | 6205 2RS C3 |
| Lifetime Of Bearings | 20000 |
| Allowed Radial Load | 811 |
| Allowed Axial Load | 671 |
| Grease Type | - |
| Lubrication Interval Of De Bearing | - |
| Lubrication Interval Of Nde Bearing | - |
| Phase | Three phase |
| Pole | 4 |
| Series | T3A |
