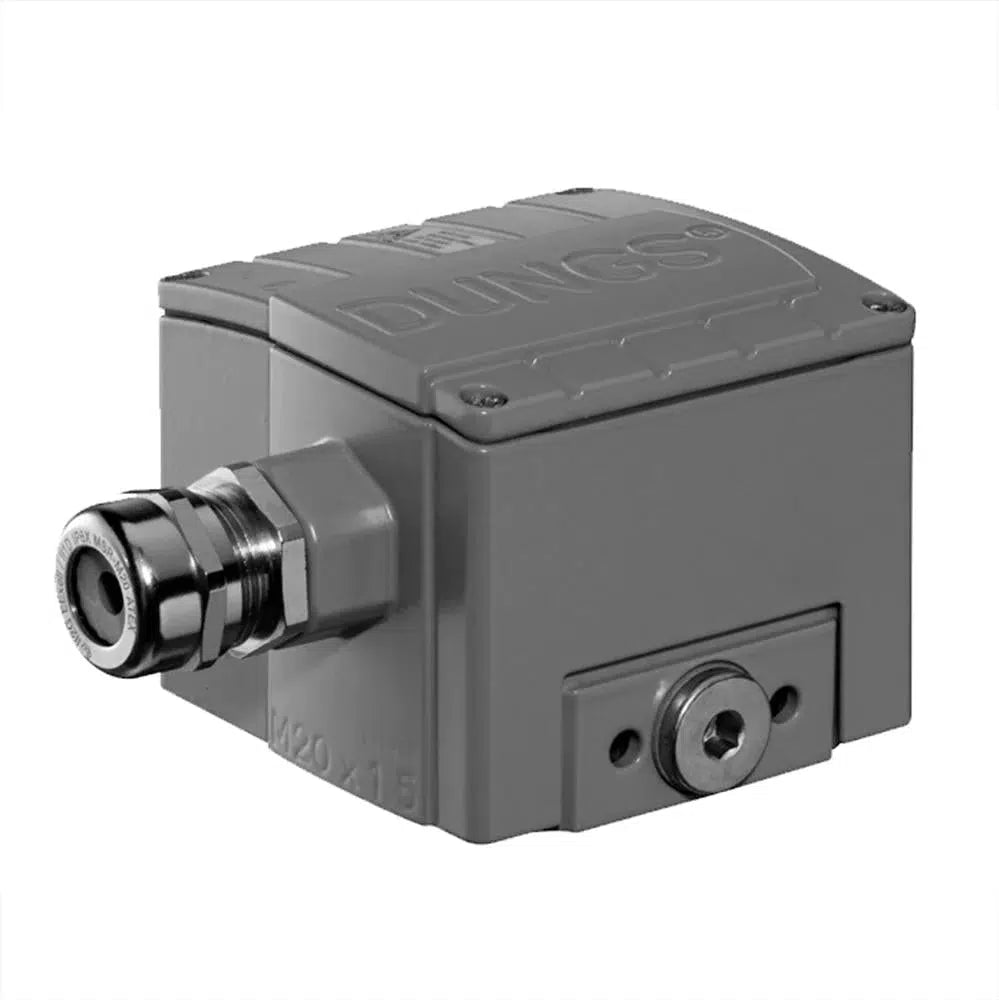

Dungs GGW150 A4-U/2 X -30 - -150 mbar - ATEX Differential Pressure Switch (Negative Pressure)
Delivery and Shipping
Delivery and Shipping
Subject to stock availability, orders will be dispatched the same day on an 'Express Next Day' service if ordered before 1pm (UK Mainland).
Technical Support On Hand
Technical Support On Hand
We are fully prepared to assist you in selecting the correct part. Our experienced staff are available to provide support.
Product Downloads Section
Download manufacturer provided PDF files here to aid product selection and installation.
Download Product Manual:
Download Product Datasheet:
Dungs GGW150 A4-U/2 X -30 - -150 mbar - ATEX Differential Pressure ...
Dungs Part Number: 248392
Special Order Item - 6- 8 Week Lead Time
Specifications
Dungs Minimum Pressure switch.
The control unit reacts on negative pressure, which connects, disconnects or switches a circuit when exceeding or falling below a set nominal value.
Simply acting pressure switch in negative pressure range. The G º pressure connection must not be closed.
The differential pressure acts on the micro switch via the membrane against the force of the adjusting spring. The pressure switch works without auxiliary power.
Adjustment Range: -30 - -150.0 mbar
Switching Difference: 3.0 mbar
ATEX Group: II
ATEX Category: 3
Atmosphere: Gas (G) and Dust (D)
Maximum surface temperature: +75
Max. Operating Pressure: 500mBar (50 kPa)
Pressure Connection:
p+: in the centre of the underside of the housing
G º-female thread as per ISO 228:
Gas or air
p+: laterally on the housing by means of
screw plug G
Gas or air
p-: laterally on the underside of the housing
G -female thread as per ISO 228:
Gas or air
Electrical Connections: screw type terminals via cable entry ATEX M20x1.5
IP Rating: IP65 (IEC529, EN 60529)
Dimensions
Mounting Orientation
 |
Standard Mounting Position | |
 |
|
|
 |
|
-
