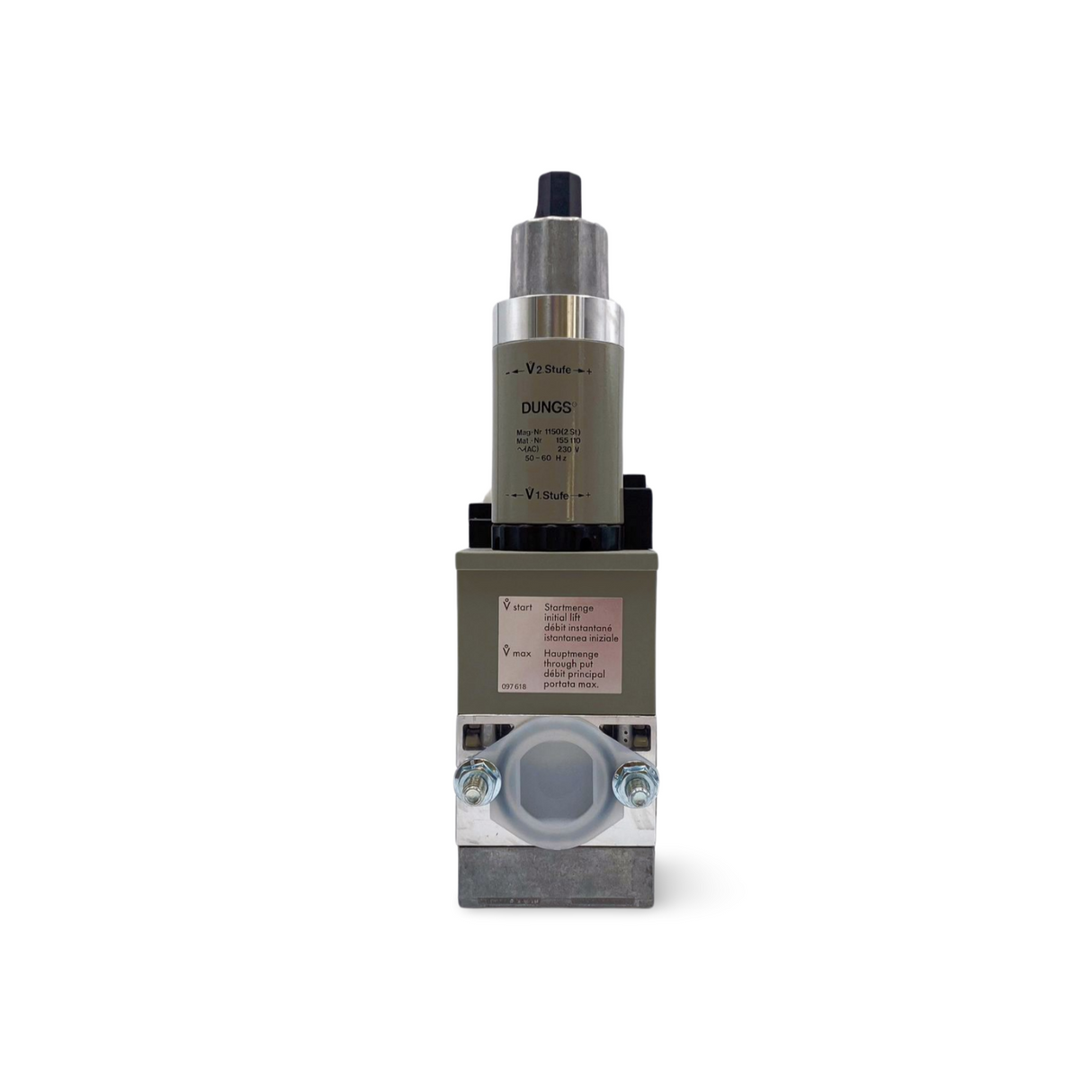

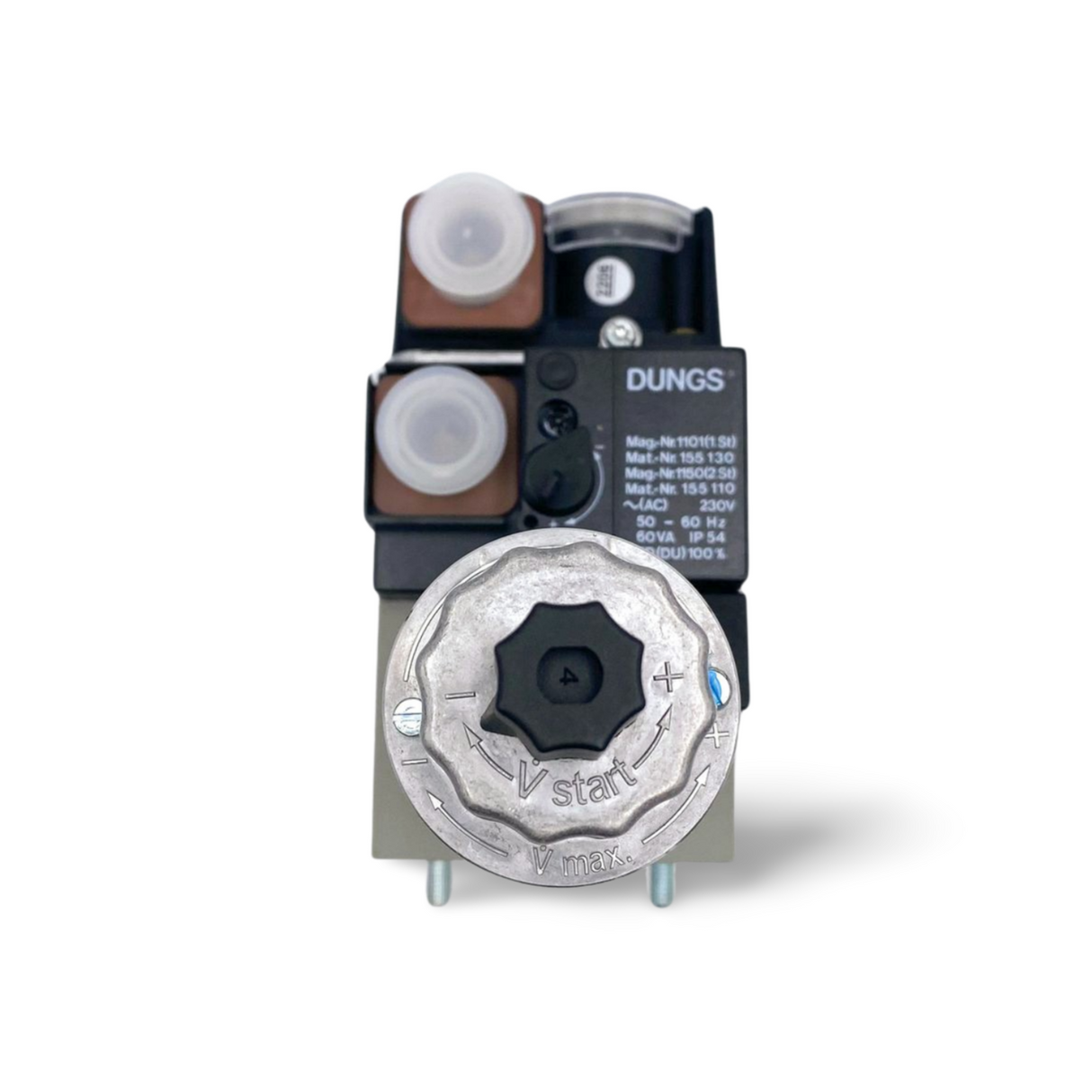

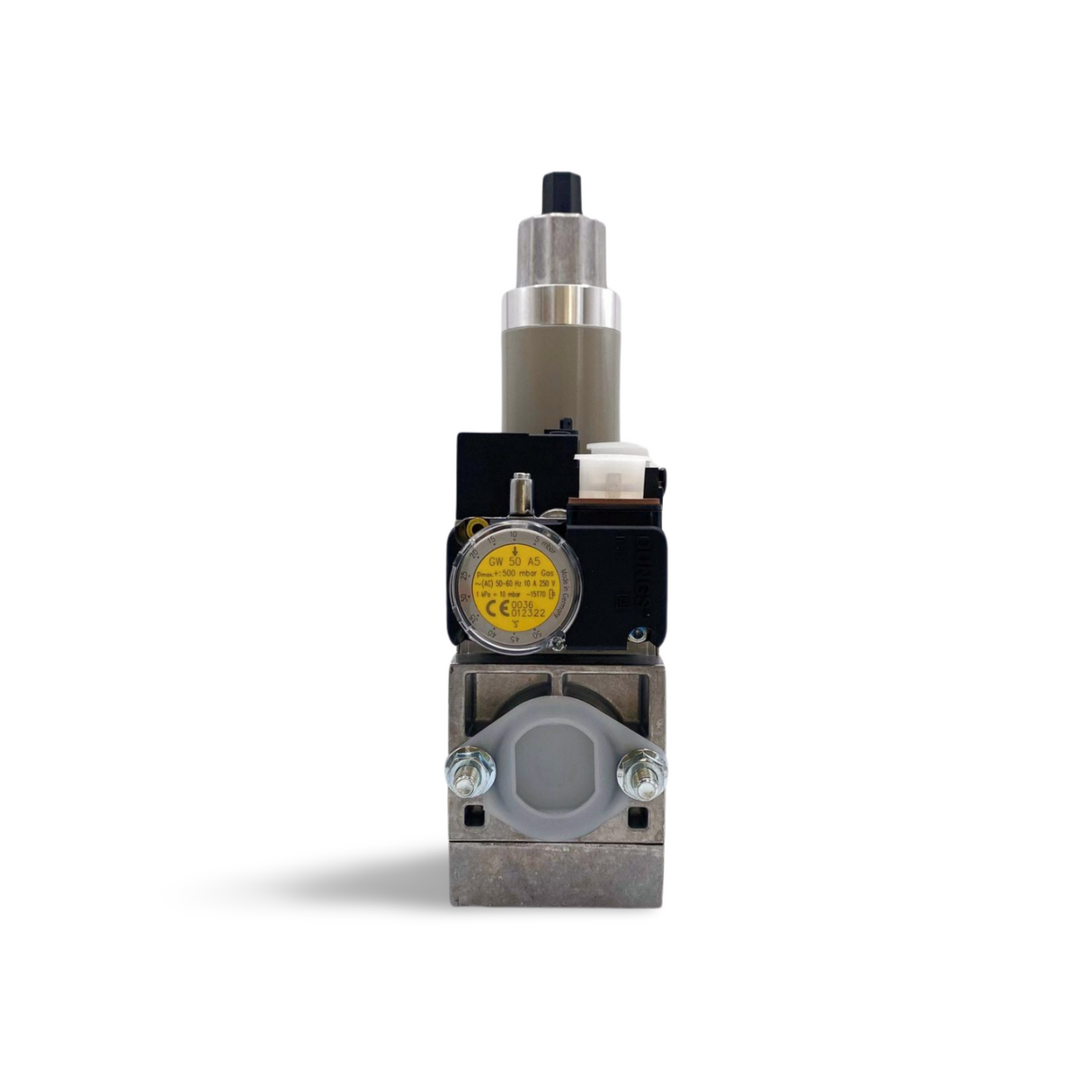

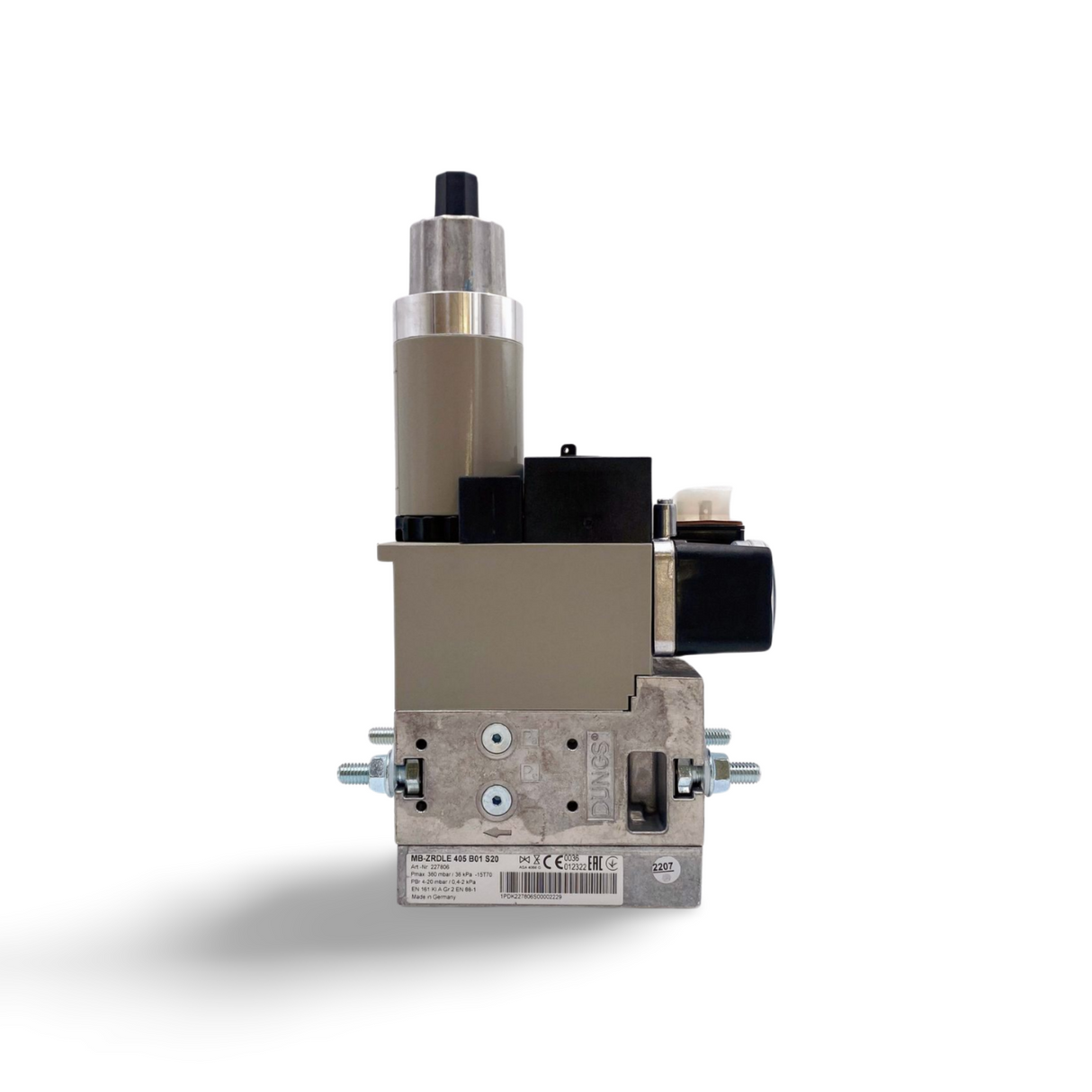

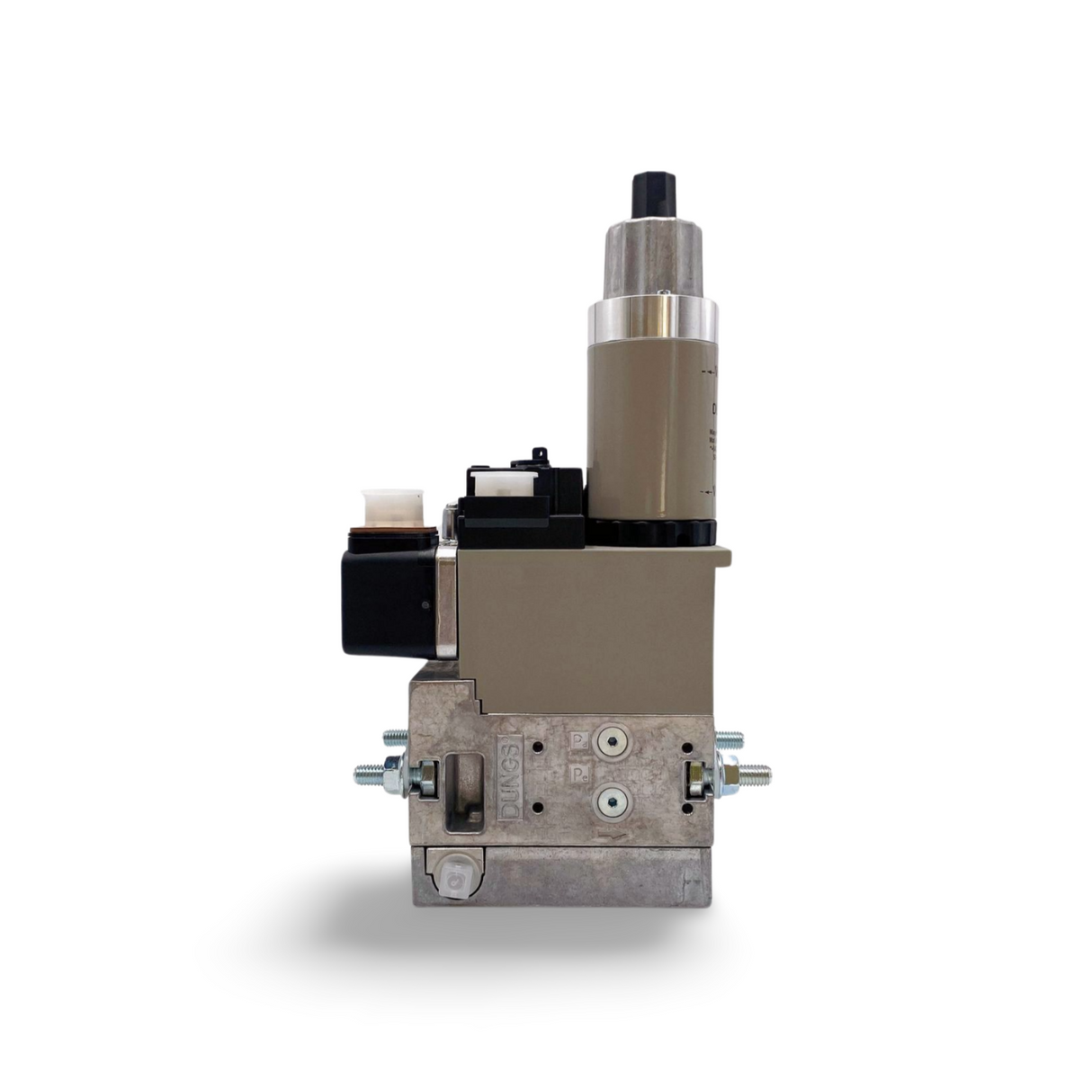

Dungs MB-ZRDLE 405 B01 S50 GasMultiBloc with Pressure Switch
Dungs MBZRDLE 405 B01 S50
Combined regulator and safety shut-off valves, Two-stage function
Select the Pressure Switch Required- Max Operating Pressure: 360mbar
- Outlet Pressure: 20-50 mbar
-
Double-stage with partial volume setting first stage
- DN15 - V2 = Single-seat Valve
- Solenoid Valve V2: Fast closing, slow opening.
- S50 Valve Control: Common
Key Features & Benefits:
- Integrated Dirt Filter – High-performance microfilter ensures clean operation.
- Advanced Valve Configuration – Includes one regulator and two main valves (B01 type). Features a combination of a single-stage and a two-stage valve, allowing flexibility in control.
- Fast & Slow Opening Valves – One valve offers rapid response, while the other can be set for either slow or fast opening, enhancing operational control.
- Optimised for Performance – Designed for solenoid valve operation up to 360 mbar (36 kPa), meeting DIN EN 161 Class A Group 2 standards.
- Precise Pressure Regulation – Output pressure is easily adjustable with a proportional regulator that complies with DIN EN 88 Class A Group 2.
- High Flow, Low Pressure Drop – Engineered for maximum efficiency in gas flow management.
- Reliable Hydraulic Opening Delay – Enhances system stability and control.
- Versatile Connection Design – Flange connections with ISO 7/1 compliant pipe threads for easy installation.
- Customisable Modular System – Allows for tailored configurations with optional external ignition gas tap, separately controlled valves, valve proving systems, pressure limiters, and min/max pressure switches.
The DUNGS GasMultiBloc® is ideal for applications requiring high precision, efficiency, and streamlined gas control. Its modular design ensures customisable solutions, making it a perfect fit for industrial and commercial gas system integrations.
-
