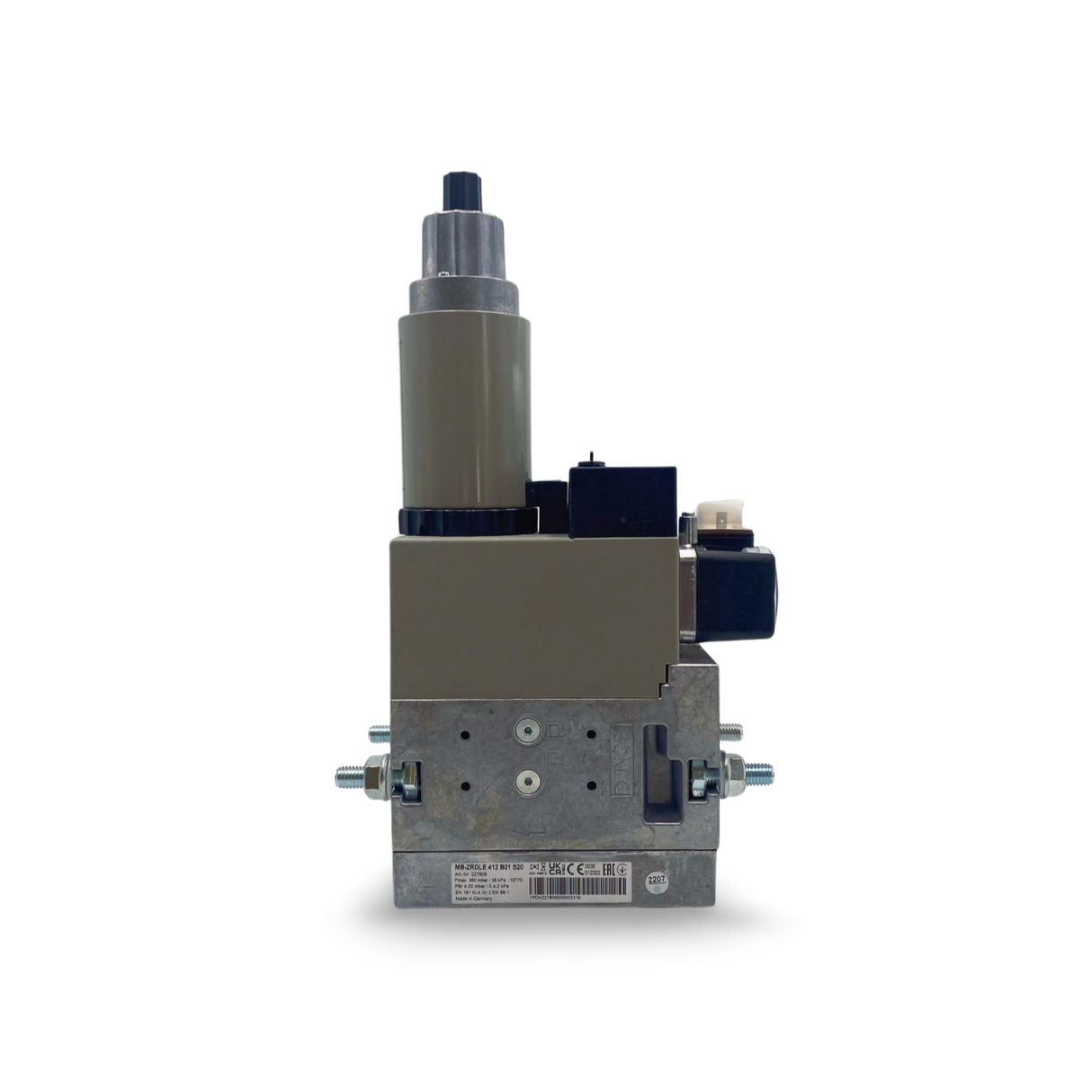

Dungs MBZRDLE 412 B01 S50
Combined regulator and safety shut-off valves, Two-stage function
Select the Pressure Switch Required
-
Max Operating Pressure: 36 kPa (360 mbar)
-
Outlet Pressure: 2-5 kPa (20-50 mbar)
-
Double-stage with partial volume setting first stage
-
DN32 - V2 = Double-seat Valve
-
Solenoid Valve V2: Fast closing, slow opening.
-
S50 Valve Control: Common
Key Features & Benefits:
-
Integrated Dirt Filter High-performance microfilter ensures clean operation.
-
Advanced Valve Configuration Includes one regulator and two main valves (B01 type). Features a combination of a single-stage and a two-stage valve, allowing flexibility in control.
-
Fast & Slow Opening Valves One valve offers rapid response, while the other can be set for either slow or fast opening, enhancing operational control.
-
Optimised for Performance Designed for solenoid valve operation up to 36 kPa (360 mbar) (36 kPa), meeting DIN EN 161 Class A Group 2 standards.
-
Precise Pressure Regulation Output pressure is easily adjustable with a proportional regulator that complies with DIN EN 88 Class A Group 2.
-
High Flow, Low Pressure Drop Engineered for maximum efficiency in gas flow management.
-
Reliable Hydraulic Opening Delay Enhances system stability and control.
-
Versatile Connection Design Flange connections with ISO 7/1 compliant pipe threads for easy installation.
-
Customisable Modular System Allows for tailored configurations with optional external ignition gas tap, separately controlled valves, valve proving systems, pressure limiters, and min/max pressure switches.
The DUNGS GasMultiBloc is ideal for applications requiring high precision, efficiency, and streamlined gas control. Its modular design ensures customisable solutions, making it a perfect fit for industrial and commercial gas system integrations.
