For pre-mix burners and forced-draft burners. Suitable for gases to EN 437 and other gaseous inert media.
Rated for: 150kW
Swirl Plate Colour: Black
Valve Class: 2 x A
Pmax: 10 kPa (100 mbar)
Nominal diameter Rp: Rp 3/4"
Includes: Air and Gas pressure Switch
Suitable for gases of gas families 1, 2, 3 and other neutral gaseous media.
Description

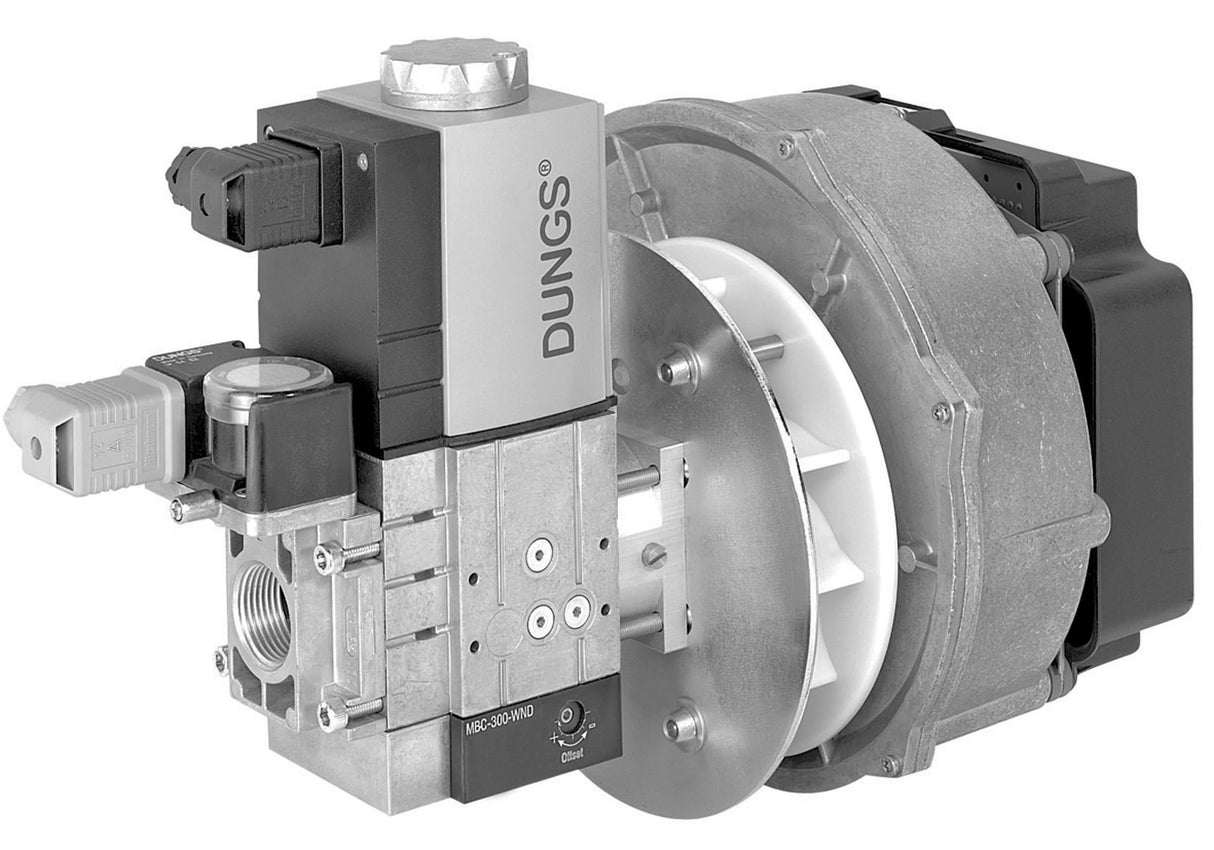

Integrated gas-air system with high power density based on DUNGS zero pressure multiple actuator MBC to EN 161 for modulating or multi-stage mode:
- Pneumatic integrated system comprising zero pressure mode and integrated signal gain possible
- Inlet pressure
- MBC-WND 120: pmax 10 kPa (100 mbar) (10 kPa)
- Modulation range up to 1:10
- Breaks up flow pattern and reduces resonances
- Offset correction of gas/air ratio at servo regulator
- Limits maximum flow by a low hysteresis flow restrictor, injector requires
- no replacement for different gas families
- Implemented by adapting system components and optimising to specific application and design requirements.
