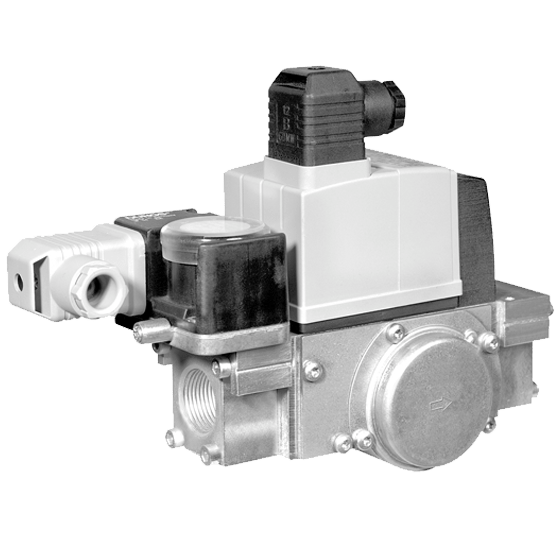

Dungs MBC-65-ND Gas MultiBloc
Flange Sizes: Rp 1/2"
Opening time: <1 sec
Valves V1 and V2: fast closing
Pressure regulator: slow opening, proportional regulator zero pressure regulator
Pmax: 65 mbar
Output pressure ranges P2 (pa): 0 ± 0.2 mbar (0 ± 0.02 kPa)
Includes: GW150 A5 Pressure Switch
Dirt trap device: Filter with 120µm mesh width
Suitable for gases of gas families 1, 2, 3
and other neutral gaseous media.
Description
Filter, valves, regulator and pressure switch are integrated in the DUNGS GasMultiBloc®
to form a compact fitting.
- Dirt trap: Microfilter
- One regulator and two valves
- Two valves (fast opening)
- Regulator (fast opening) or regulator (slow opening)
- Solenoid valves as per DIN EN 161
- Class A Group 2
- MBC-65 to 200 mbar (20 kPa)
- Sensitive setting of output pressure via servo pressure regulator as per DIN EN 88
Class C Group 2 - Opening delay by means of damped pressure rise
- High flow values at low pressure difference
- DC voltage solenoid drive
- Main valve restrictor downstream of regulator
- Flange connections with tube threads as per ISO 7/1
- Easy-to-mount, small dimensions, low weight
| Dimension | mm |
| a | 105 |
| b | 148 |
| c | 31 |
| d | 160 |
| e | 226 |
| f | 76 |
Application
The modular system provides individual solutions in gas safety and control systems.
Suitable for gases of gas families 1, 2, 3 and other neutral gaseous media.
EC type testing certificate as per:
• EC-Gas Appliances Regulation
• EC-Pressure Equipment Directive
Approvals in other important gas-consuming countries.
-
