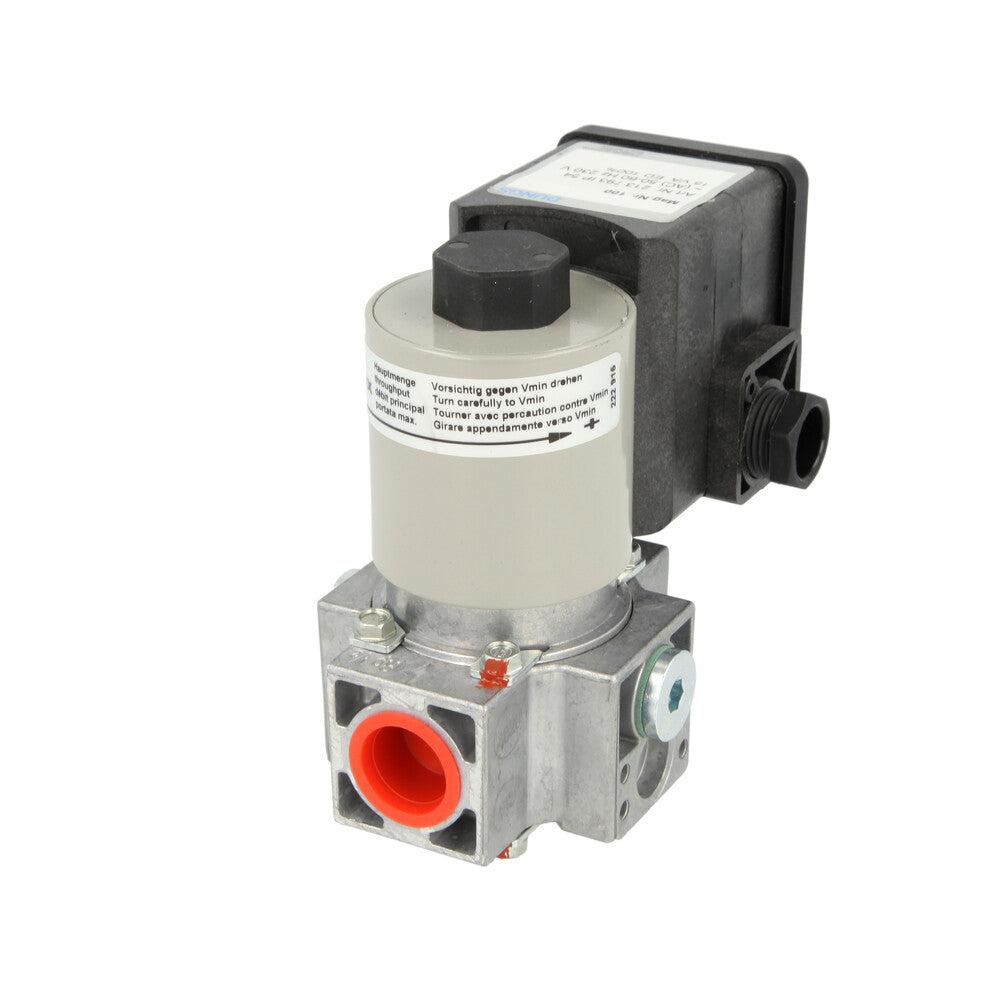

Dungs MVD 205/5 Solenoid Gas Safety Shut Off Valve

Name: Dungs MVD 205/5 Solenoid Gas Safety Shut Off Valve
Brand: Dungs
SKU: SPA462
Availability: BackOrder

Dungs | SKU: SPA462 | Barcode: 013102

2.5 kg

¥1,603.00

Shipping & appropriate taxes calculated at checkout.

Delivery and Shipping

Dispatch Time

Dispatch within 2–5 days depending on supplier availability.

Express Delivery

Next Business Day (UK Mainland)

Free Shipping

Orders Over £100 (UK Mainland)

Tracking

Real-time Updates

Secure packaging for industrial components
Same day shipping available (on request)

Technical Support On Hand

Response Time

Within 2 Hours

Support Hours

Mon-Thurs: 8:30-17:00 GMT

Fri: 8:30-15:00 GMT

Live Chat

Support Available Online

Expert Engineers

Siemens Certified

Obsolete replacement part assistance
Comprehensive documentation library
Commissioning Support
Priority parts replacement service

Description

Dungs MVD 205/5 Gas Safety Shutoff Valve

Overview

The Dungs MVD 205/5 series are electrically operated normally closed, automatic safety shutoff valves for gas burners and gas appliances.

The Dungs MVD205/5 safety shutoff valve applications include commercial and industrial applications that require one or two safety shutoff valves. This MVD safety valve is suitable for use with gases such as dry natural gas, butane, propane, air and inert gases.

Dungs MVD 205/5 Gas Valve Features

The Dungs Dual Modular Valve (DMV) features a compact profile resulting in a low pressure drop whilst reducing the overall size of the gas shutoff valve. The valves can be wired in parallel or independently, the Dungs MVD also makes it possible to make a compact valve train without any extra piping.

Closing time: Under 1s
Max. close off pressure 15 PSI (100 kPa (1000 mbar)) on all models
IP Rating: IP52
Reliable, quiet operation; rugged and low maintenance.
From vertically upright to horizontal.
Weight: Approx. 800g

Dungs MVD Dimensions

Control Box	Height	Width	Depth
MVD 203/5	155mm	70mm	75mm
MVD 205/5	155mm	70mm	75mm
MVD 207/5	190mm	80mm	100mm
