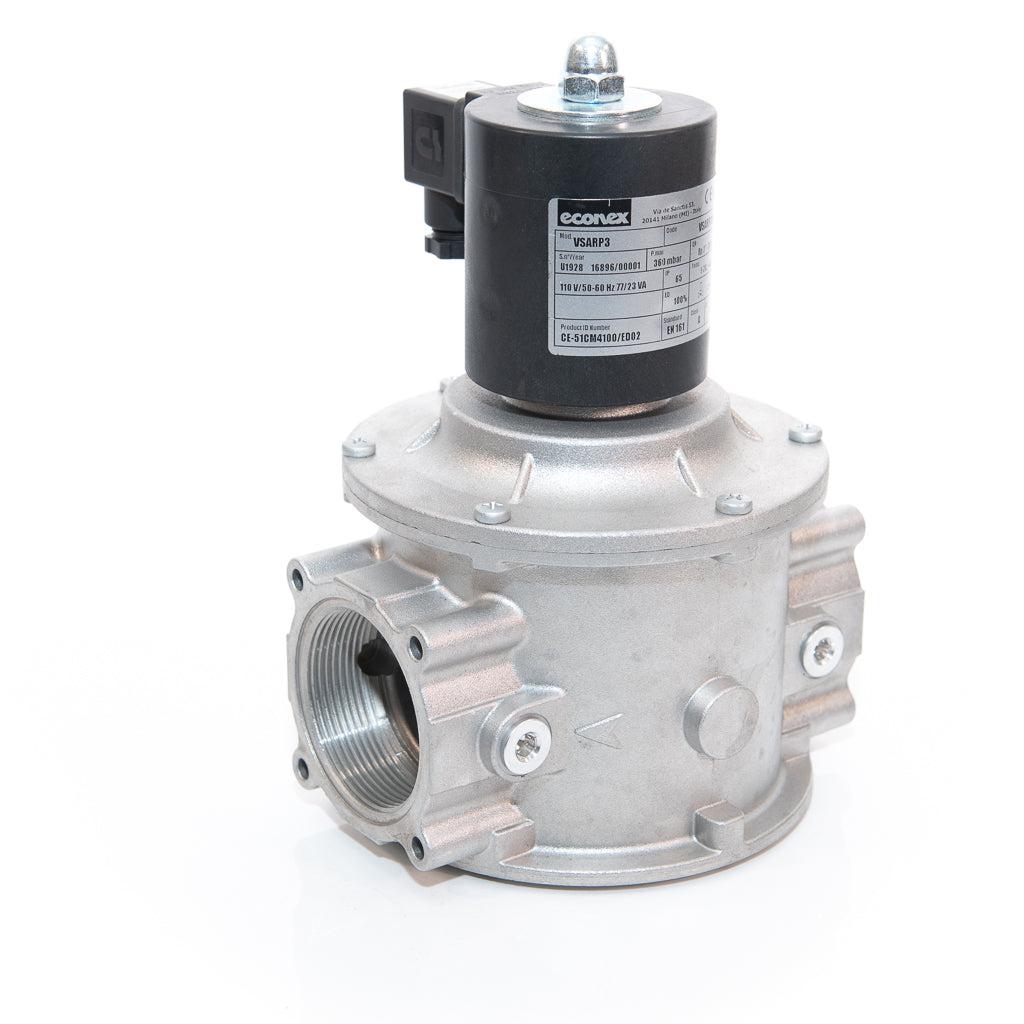

Econex VSARP540C 1.5" Single Solenoid Valve - 500mbar

The Econex VSARP540C 1.5" Single Solenoid Valve - 500mbar is a part of the VSA series of gas safety solenoid shut-off valves, designed for high-pressure applications. These valves comply with the Norm EN 161 and are manufactured in accordance with the ATEX rule 94/9/CE for Zone 2 and 22 (II 3G II 3D). They are apt for the automatic control of gases belonging to the first, second, and third family, and can be adapted for air use upon request.

Key features of the Econex VSARP540C include:

• The valve body is constructed from die-cast aluminum for strength and durability.
• It features threaded connections, with this particular model having Rp 1. 1/2 according to EN10226.
• The valve is designed for inlet pressures of 1, 3, and 6 bar.
• It has a quick opening and closing time of less than 1 second.
• Suitable for operation in ambient temperatures ranging from -20 to +60°C.
• Various supply voltage options are available, including 230V ac, 110V ac, 24V - 12V ac and dc, although not all sizes support all voltage options.
• The valve operates within a frequency range of 50 - 60 Hz, with 50 Hz specifically for the 24V ac model.
• It is rated with an IP 65 enclosure, indicating a high level of protection against environmental factors.
• The valve has a supply voltage tolerance range of -15% to +10%.
• Designed for a continuous duty cycle, it ensures reliable, long-term operation.

Additionally, like other valves in this series, the VSARP540C is normally closed for continuous and cyclic operation. It opens when the coil is powered and closes quickly in the absence of tension. The coil is encapsulated in PA resin. The valve includes pressure test points at the inlet from both sides. Optional accessories for this model include a limit switch, maximum flow adjustment, and rapid stroke.

These features make the Econex VSARP540C 1.5" valve a robust and efficient choice for gas flow control in various industrial and commercial applications.
