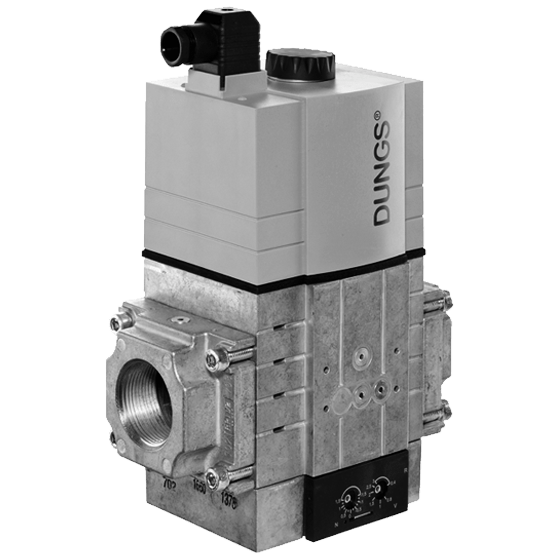

Dungs MBC-300-VEF GasMultiBloc
Flange Sizes: 1/2" - 1 1/4"
Opening time: <1 sec
Solenoid No.: 032/2P
Pmax. [VA] for t = 3 s: 120
Pmax. [VA] operation: 15
Includes: GW150 A5 Pressure Switch
Dirt trap device: Micro-filter made of chopped-strand nonwoven fabric. Filter replaceable without removing fitting
Suitable for gases of gas families 1, 2, 3
and other neutral gaseous media.
Description
The DUNGS multiple actuator MBC300VEF offers filter, valves and servo pressure
regulator in one compact unit:
Dirt trap: microfilter
2 solenoid valves up to 360 mbar (36 kPa)
as per DIN EN 161 class A group 2
Servo pressure regulator as per DIN EN
88 class A group 2; EN 12067-1
Fine setting of gas and air pressure ratio
Flange connections with pipe threads as per ISO 7/1 or NPT
As this system has a modular design, we can offer individual solutions with valve
inspection system, pressure switches mini/maxi and pressure limiters. High flow values at low pressure difference.
| Dimension | mm |
| a | 95 |
| b | 143 |
| c | 61 |
| d | 175 |
| e | 269 |
| f | 87 |
| g | 236 |
Application
The servo pressure regulator permits optimum mixture formation in forced air
burners and premix burners; this applies to modulating and multi-stage variable
operating modes.
Ratio V = pBr / pL = 0.4:1…3:1
Zero point correction possible
Internal pulse line pBr
EC type testing certificate as per:
• EC-Gas Appliances Regulation
• EC-Pressure Equipment Directive
Approvals in other important gas-consuming countries.
-
