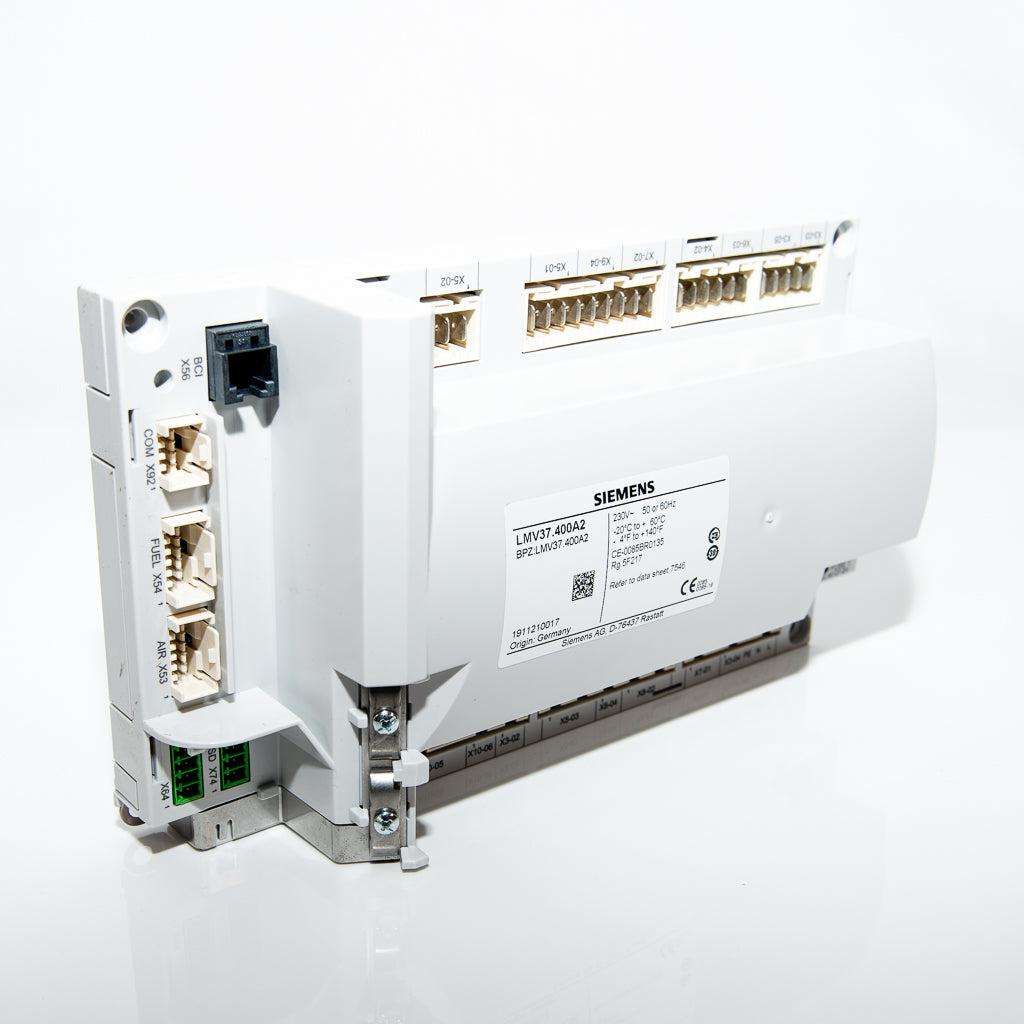

Siemens LMV37.400A2 Burner Management System
Siemens LMV37.400A2 Burner Management System - No Lead / No Display / No Connectors is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Subject to stock availability, orders will be dispatched the same day on an 'Express Next Day' service if ordered before 1pm (UK Mainland).
Technical Support On Hand
Technical Support On Hand
We are fully prepared to assist you in selecting the correct part. Our experienced staff are available to provide support.
Siemens LMV37.400A2 Burner Management System
DOWNLOADS
Download Product Manual:
Download Product Datasheet:
Siemens LMV37.400A2 Burner Control - 230v
Basic unit with integrated air-fuel ratio control for forced draft burners
Bundles offered at discounted prices. Select from the options to build yours.
Siemens LMV37.400A2 Bundles
Many customers purchase common accessories with their LMV37. We have put some of the most common ones together with a little discount to make it simpler for you.
For information on these products, please see the links here:
Siemens OCI410.20 Lead Connect to your PC for basic setup and programming of the LMV37.4xx
Siemens AZL21.00A9 Display Detached display and operating unit, choice of mounting methods, 8-digit LCD, 5 buttons, BCI for LMV37.4xx. IP40.
Siemens AZL23.00A9 Display Detached display and operating unit, choice of mounting methods, 8-digit LCD, 5 buttons, BCI for LMV37.4xx, degree of protection IP54.
Siemens AGG3.131 Complete connector set for all terminals on the LMV37.400A2
The LMV37.400A2 is a microprocessor-based burner control for single-fuel burners of any capacity, electronic air/fuel ratio control, up to 2 actuators, integrated gas valve proving system.
- Suitable for use Continuous Operation only when combined with an Ionisation Probe
- For intermittent operation, the LMV37.400A2 can be used with any of the following UV Cells: QRA, QRB or QRC
Features
The following features are built into this burner management system:
- Burner management complete with Valve Proving System
- Electronic air-fuel ratio control system for a maximum of 2 x SQM3 or SQN1 actuators
- Control of a VSD fan
- Modbus Interface
- BCI for connection to a display or a PC
- Unit parameter adjustable either via display or PC software ACS410
Technical Specifications
Voltage: 230VAC
Power Consumption: <30W
Perm. mains primary fuse: Max. 16AT
Mode of operation: Type 2B in accordance with DIN EN 60730-1
Voltage Detection (ON): 180V-253VAC
Voltage Detection (OFF): <80VAC
Temperature: -20C - +60 C
Dimensions
| Control Box | Height | Width | Depth |
|---|---|---|---|
| LMV37.400 A2 | 230mm | 135mm | 60mm |
-
