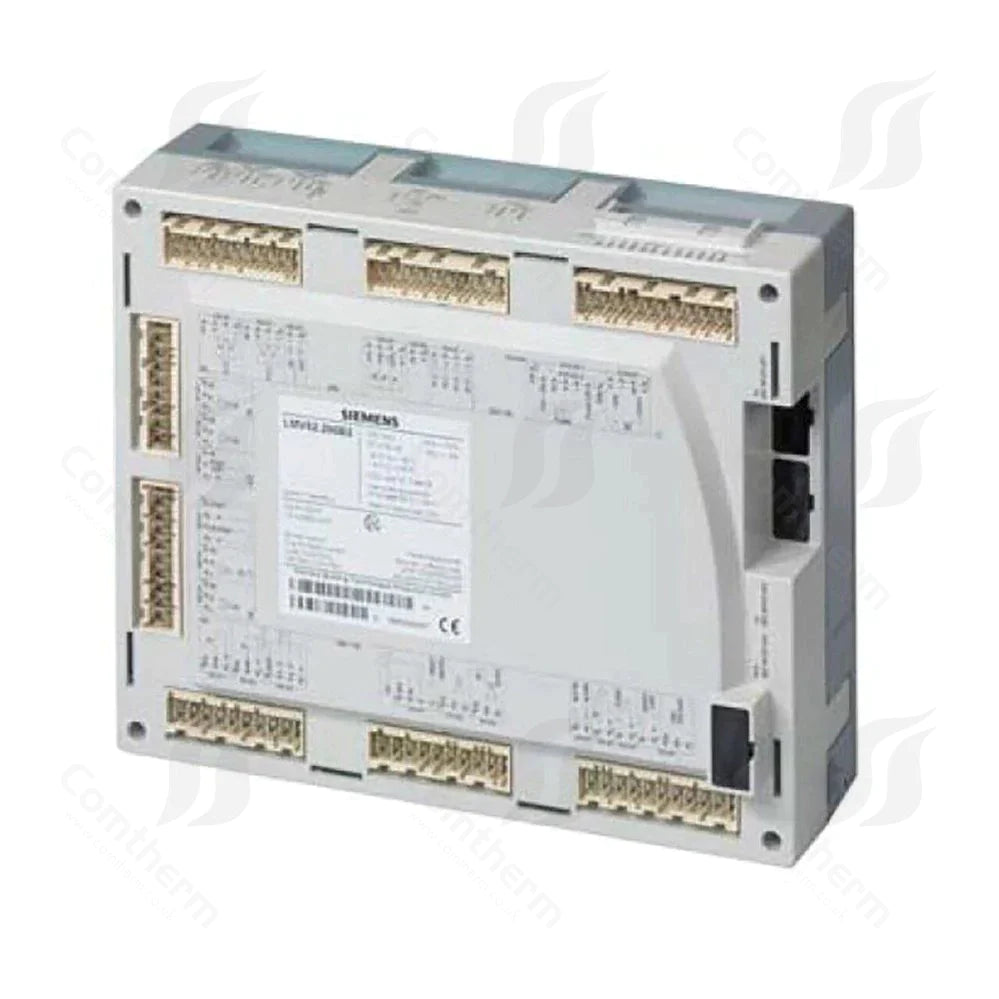

Siemens LMV51.000C2 Burner Management System
Siemens LMV51.000C2
The LMV51 is a burner management system with integrated fuel/air ratio control and load control for use with forced draft burners. With specific functions for industrial applications.
LMV51.000C2 Features
This Siemens burner control box features electronic fuel/air ratio control for a maximum of 4 actuators, optional PID temperature or pressure controller, and an optional VSD module. The LMV51.000 control box also has a designed lifetime of 250,000 startup cycles which, under normal operating conditions correspond to approx. 10 years of usage.
Specifications
- Voltage: 230VAC
- Perm. mains primary fuse: Max. 16AT
- Mode of operation: Type 2B in accordance with DIN EN 60730-1
- Under voltage Detection: 186V-253VAC
- Temperature: -20° C - +60° C
Dimensions
| Control Box | Height | Width | Depth |
|---|---|---|---|
| LMV51.000C2 | 230mm | 135mm | 60mm |
-
