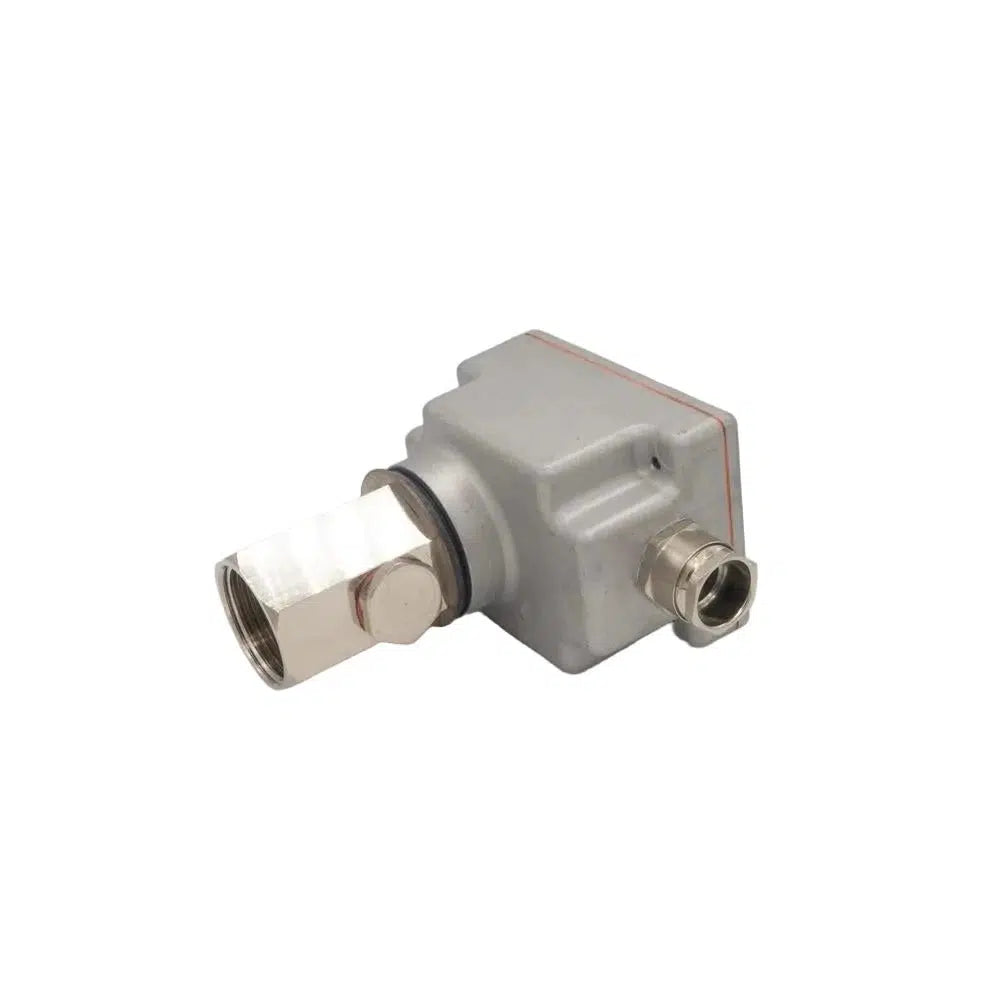

Siemens QRA10.C UV Flame Detector

Name: Siemens QRA10.C UV Flame Detector
Brand: Siemens
SKU: SPA648
Availability: InStock

Siemens | SKU: SPA648 | Barcode: BPZ:QRA10.C

1.0 kg

¥2,848.00 ¥4,036.00

Shipping & appropriate taxes calculated at checkout.

Delivery and Shipping

Dispatch Time

Limited stock available – same-day dispatch before 1pm.

Express Delivery

Next Business Day (UK Mainland)

Free Shipping

Orders Over £100 (UK Mainland)

Tracking

Real-time Updates

Secure packaging for industrial components
Same day shipping available (on request)

Technical Support On Hand

Response Time

Within 2 Hours

Support Hours

Mon-Thurs: 8:30-17:00 GMT

Fri: 8:30-15:00 GMT

Live Chat

Support Available Online

Expert Engineers

Siemens Certified

Obsolete replacement part assistance
Comprehensive documentation library
Commissioning Support
Priority parts replacement service

Description

Siemens QRA10.C UV Cell -

Die-cast aluminium housing with a 1 in. mounting coupling and connection facility for cooling air. The housing of this detector has a bayonet fitting which allows it to be secured either directly to the 1 in. mounting coupling or to the AGG06 glass holder. The 1 in. mounting coupling can be screwed to a viewing tube or to the AGG07 ball head. The Pg cable gland can be removed and replaced, if some other detector cable shall be used.

Specification:

This QRA10.C Photocell comes with a lens.
The flame detectors are used for the supervision of gas flames, yellow- or blue-burning oil flames and for ignition spark proving.

Technical Data:

Sensitivity: Normal

Average life of UV cell: 10,000 hours

Weight: 740g

Degree Of Protection: IP54

Mounting Position: Any

Spare UV Tube: AGR4 5021131 0
