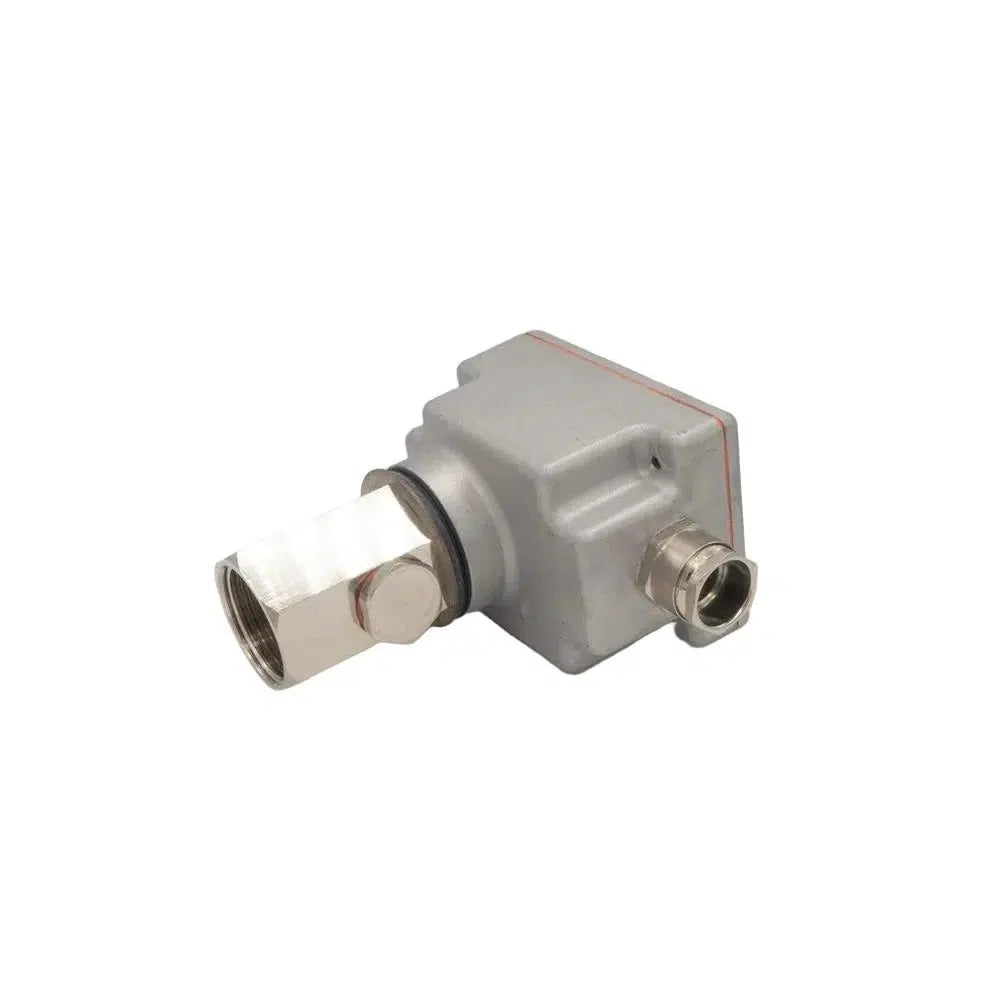

Siemens QRA10M.C UV Flame Detector - High Sensitivity
Siemens QRA10M.C UV Cell - High Sensitivity
Die-cast aluminium housing with a 1 in. mounting coupling and connection facility for cooling air. The housing of this detector has a bayonet fitting which allows it to be secured either directly to the 1 in. mounting coupling or to the AGG06 glass holder. The 1 in. mounting coupling can be screwed to a viewing tube or to the AGG07 ball head. The Pg cable gland can be removed and replaced, if some other detector cable shall be used.
Specification:
- This QRA10M.C Photocell comes with a lens.
- The flame detectors are used for the supervision of gas flames, yellow- or blue-burning oil flames and for ignition spark proving.
Technical Data:
Sensitivity: High
Average life of UV cell: 10,000 hours
Weight: 740g
Degree Of Protection: IP54
Mounting Position: Any
Spare UV Tube: AGR4 502 4065 0
-
