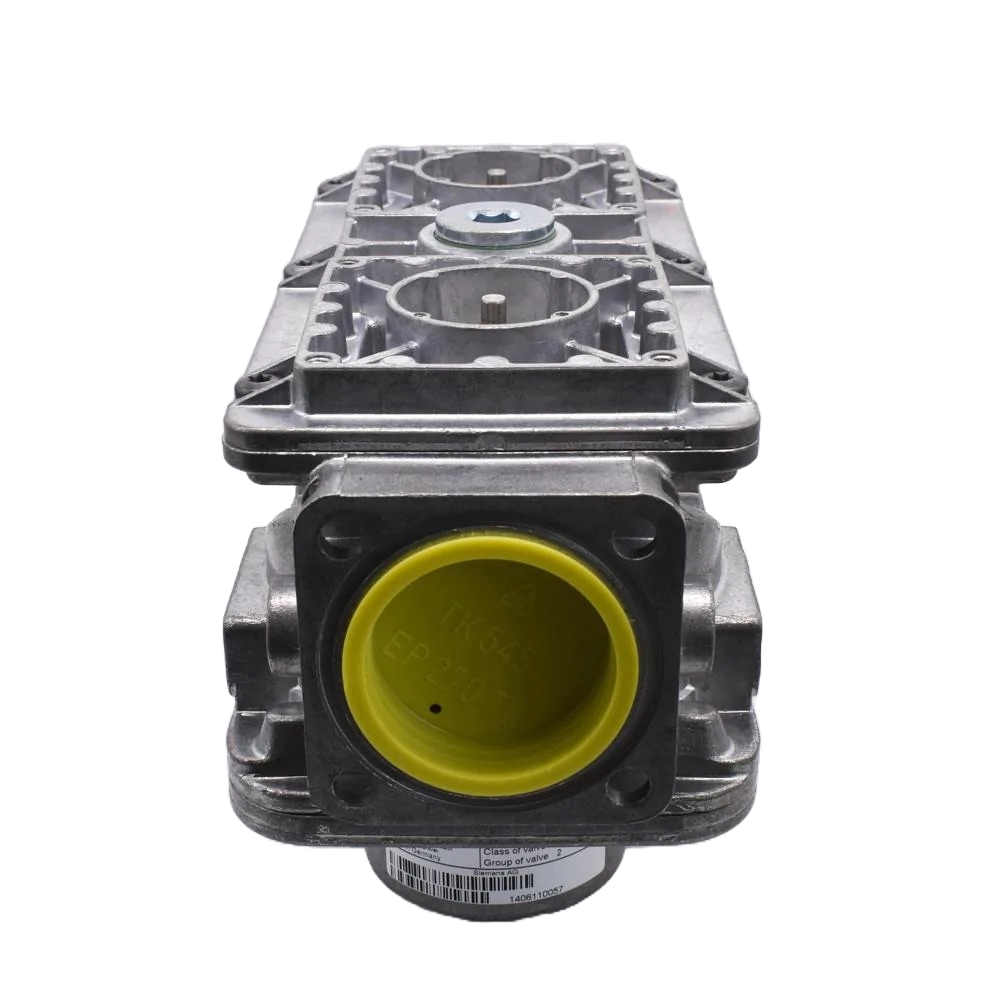

Siemens VGD20.503U Double Gas Valve Body - 2" NPT

Name: Siemens VGD20.503U Double Gas Valve Body - 2" NPT
Brand: Siemens
SKU: SPA237
Availability: BackOrder

Siemens | SKU: SPA237 | Barcode: BPZ:VGD20.503U

3.0 kg

¥3,462.00 ¥4,203.00

Shipping & appropriate taxes calculated at checkout.

Delivery and Shipping

Dispatch Time

Dispatch within 2–5 days depending on supplier availability.

Express Delivery

Next Business Day (UK Mainland)

Free Shipping

Orders Over £100 (UK Mainland)

Tracking

Real-time Updates

Secure packaging for industrial components
Same day shipping available (on request)

Technical Support On Hand

Response Time

Within 2 Hours

Support Hours

Mon-Thurs: 8:30-17:00 GMT

Fri: 8:30-15:00 GMT

Live Chat

Support Available Online

Expert Engineers

Siemens Certified

Obsolete replacement part assistance
Comprehensive documentation library
Commissioning Support
Priority parts replacement service

Description

Siemens VGD20.503U - Double gas valve 2" BSP

The Siemens VGD 20 503U is designed as a double gas valve to be integrated into gas trains.

A universal mounting plate facilitates attachment of a number of commercially available pressure switches or valves proving devices. Both the pilot gas flange and the universal mounting plate are exchangeable and can be fitted on either side of the valve.

VGD20.503U Gas Valve Specifications

2" Flange
Permissible maximum operating pressure (dynamic pressure) kPa: 150
Volume between V1 / V2 (Liters): 0.8
Use with SKP Actuators
Static Pressure (closed) 1200mbar
3 Connections
