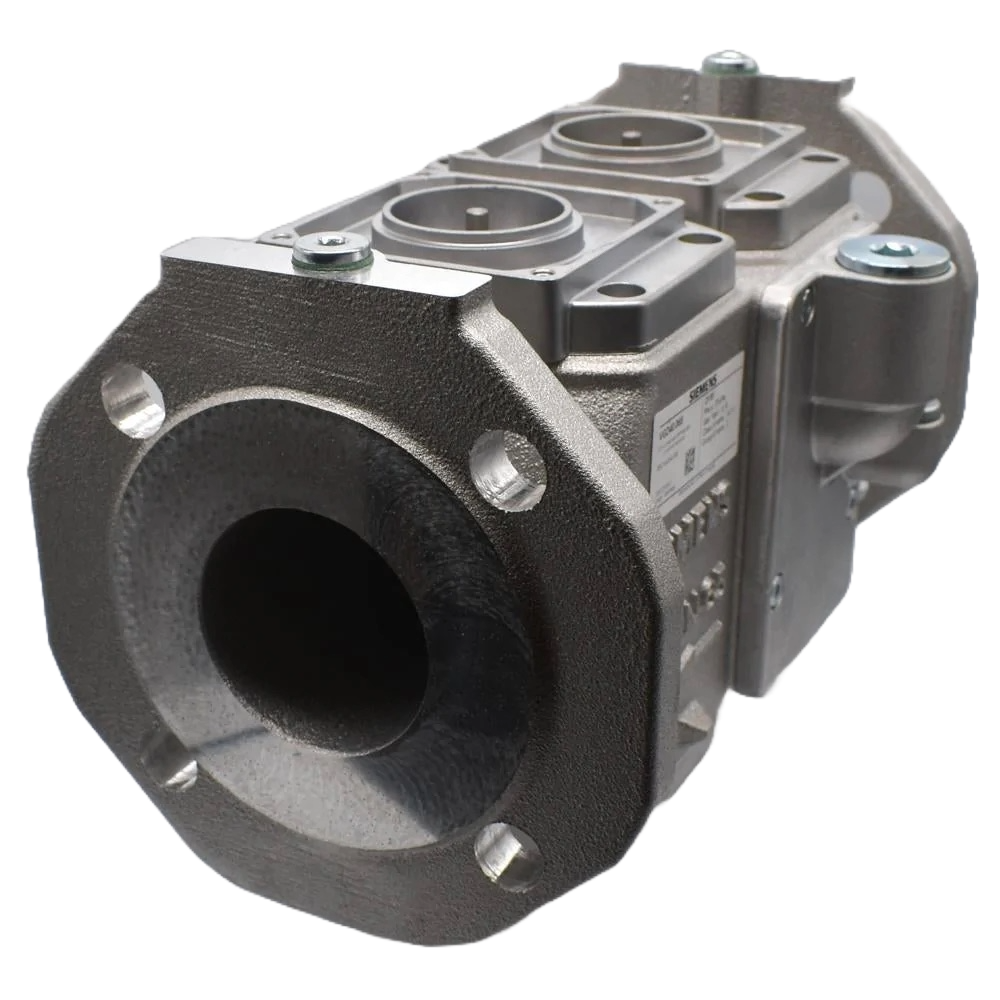

Siemens VGD40.065U DN65 Double Gas Valve - NPT

Siemens VGD40.065U - Double gas valve, NPT 2.5"

Air flow rate (m3/h) at ^p = 1 kPa - 160 kPa

Siemens Part Number: BPZ:VGD40.065U

Capacity CFH Natural gas at ^P = 1" W.C - 3880

Compact VGD40.065 double-valve bodies consist of 2 safety shut-off valves in series.

Each individual safety shut-off valve has double seats to achieve high flow.

Patented seat construction with individual closing spring for each seat to assure reliable shut-off and high close-off pressure rating

Full port vent line connection plates are available

Gaskets

Flanged valves must be installed using non¬metallic flange gaskets. Gasket material must be chemically compatible with the fuel gas being used in the application and must be softer than the aluminium flange sealing surface.

Siemens VGD40.065U Specs

• 2.5"
• Permissable Operating Pressure psi: 10
• Air flow rate kPa: 3880

• Use with SKP Actuators

Body Material: Aluminium

Number Of Test Points (Rp1/4"): 3

Number Of Pilot Gas Branches (G3/4"): 1
