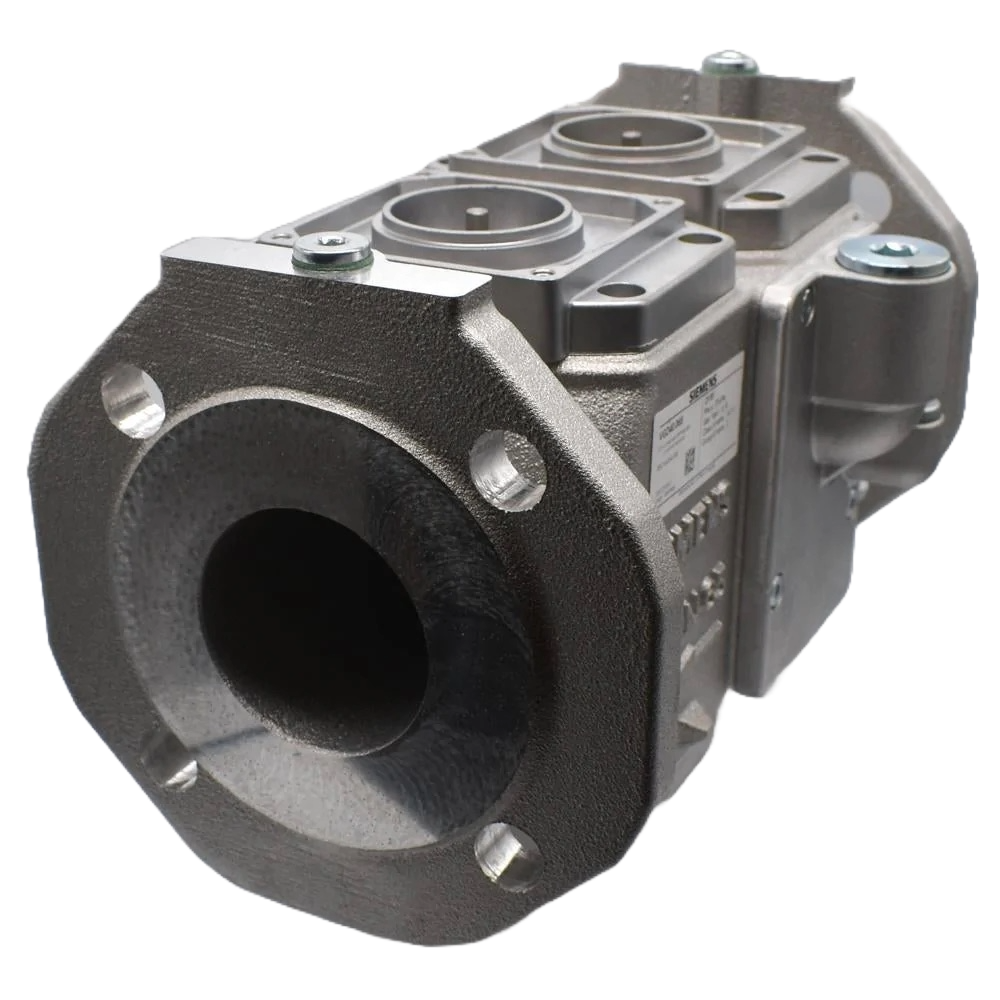

Siemens VGD40.100U DN100 Double Gas Valve - NPT

Siemens VGD40.100U - Double gas valve, DN100 ANSI

Air flow rate (m3/h) at ^p = 1 kPa - 400 kPa

Siemens Part Number: BPZ:VGD40.100U

Capacity CFH Natural gas at ^P = 1" W.C - 9680

Compact VGD40.100U double-valve bodies consist of 2 safety shut-off valves in series.

Each individual safety shut-off valve has double seats to achieve high flow.

Patented seat construction with individual closing spring for each seat to assure reliable shut-off and high close-off pressure rating

Full port vent line connection plates are available

Gaskets

Flanged valves must be installed using non¬metallic flange gaskets. Gasket material must be chemically compatible with the fuel gas being used in the application and must be softer than the aluminium flange sealing surface.

Siemens VGD40.100U Specs

• DN100 ANSI Flange
• Permissable Operating Pressure psi: 10
• Air flow rate kPa: 9680

• Use with SKP Actuators

Body Material: Aluminium

Number Of Test Points (Rp1/4"): 3

Number Of Pilot Gas Branches (G3/4"): 1
