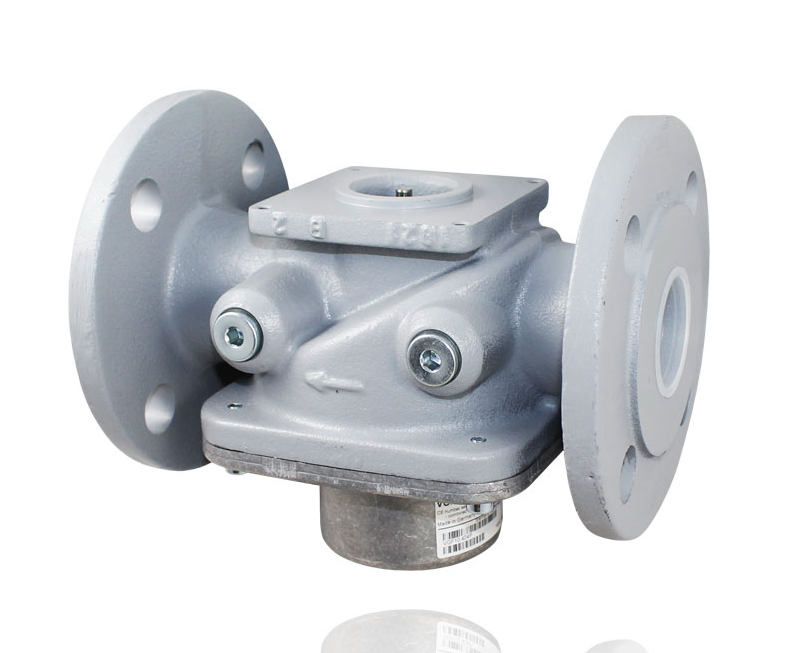

Siemens VGF10.404P DN40 Gas Valve
The VGF10.404P gas valves are single valves of class A for installation in gas trains, when used in connection with actuators they will open slowly and close rapidly. The VGF gas valve series have a designed lifetime of 100,000 burner startup cycles.
VGF10.404P DN40 Specifications
The VGF10.404P gas valve is primarily used for application at gas-fired combustion plants, or for gas trains at forced draft burners. The valve can be used as a shutoff valve or as a control valve with a shutoff feature.
Specifications
Suited for gas of gas families 1, 2, 3 and air
Built in strainer - 0.9mm mesh size
Connecting Flanges: PN16 to ISO 7005-2
Flange size: DN40
Air flow rate at ˆ p = 1 mbar / m³ / h: 32.3
Test point RP ¼: 4
Permitted Operating Pressure: 600mbar
Weight: 7.5kg
