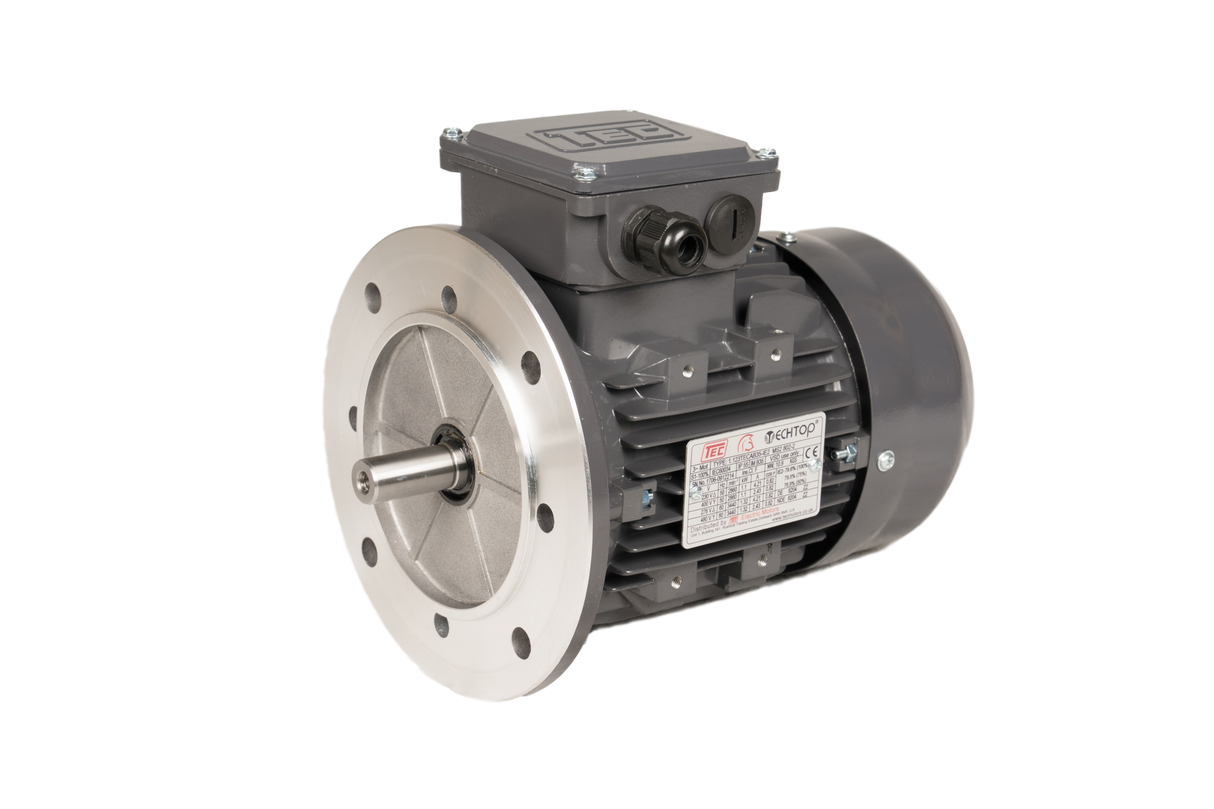

0.75kW 2 Pole 3 Phase Motor IE3 - B5 Flange Mounting
| Tec Reference | 0.7523TECAB5-IE3 |
| Factory Reference | T3A 801-2 |
| Type | 3 phase aluminium |
| Output | 0.75 |
| Rated Current | 2.87 | 1.66 |
| Rotation Speed | 2890 | 3468 |
| Efficiency 100 | 80.7 |
| Efficiency 75 | 80.3 |
| Efficiency 50 | 77.2 |
| Power Factor | 0.81 |
| Rated Torque | 2.48 |
| Tst Tn Times | 3.1 |
| Tmin Tn Times | 2.3 |
| Tmax Tn Times | 3.2 |
| Ist In Times | 7.4 |
| Noise | 67 |
| Net Weight | 8.9 |
| Moment Of Inertia | 0.000972 |
| Full Frame Ref | 801-2 |
| Frame Size | 80 |
| Construction | Aluminium |
| Mounting | B5 |
| Mounting Type | Flange Mounted |
| Type Of Feet | Not Fitted |
| Insulation Class | F |
| Protection Degree | IP55 |
| Thermal Protection | PTC 130°C |
| Rotation Direction | F / R |
| Duty | S1 |
| Cable Glands | 1 - M20 x.5 |
| Cooling | IC 411 |
| Painting Color | RAL 7024 |
| Standard | IEC 60034 |
| Ambient Temperature | -20°C to +40°C |
| Frequency | 50 | 60 |
| Voltage A B | 230 | 400 |
| Voltage C D | 276 | 480 |
| Starting Method | DOL / Inverter / Soft Start |
| Efficiency Level | IE3 |
| Bearings Brand | NSK |
| Bearing Type 1 | 6204 2RS C3 |
| Bearing Type 2 | 6204 2RS C3 |
| Lifetime Of Bearings | 20000 |
| Allowed Radial Load | 595 |
| Allowed Axial Load | 465 |
| Grease Type | - |
| Lubrication Interval Of De Bearing | - |
| Lubrication Interval Of Nde Bearing | - |
| Phase | Three phase |
| Pole | 2 |
| Series | T3A |
