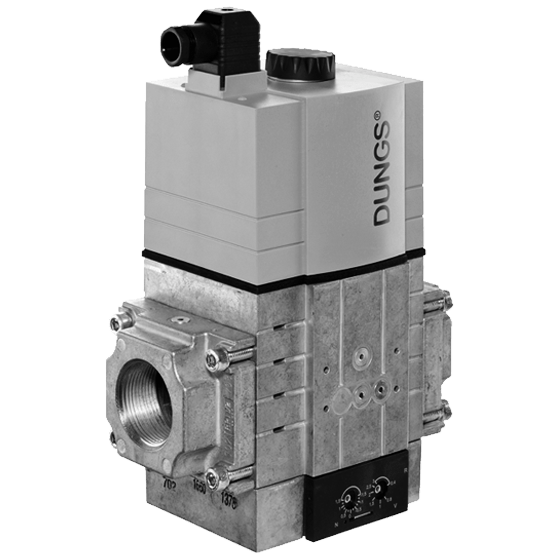

Dungs MBC-700-VEF GasMultiBloc

Flange Sizes: 1" - 2"

Opening time: <1 sec

Solenoid No.: 042/2P

Pmax. [VA] for t = 3 s: 180

Pmax. [VA] operation: 20

Includes: GW150 A5 Pressure Switch

Dirt trap device: Micro-filter made of chopped-strand nonwoven fabric. Filter replaceable without removing fitting

Suitable for gases of gas families 1, 2, 3
and other neutral gaseous media.

Description

The DUNGS multiple actuator MBC700VEF offers filter, valves and servo pressure
regulator in one compact unit:

Dirt trap: microfilter
2 solenoid valves up to 36 kPa (360 mbar) (36 kPa)
as per DIN EN 161 class A group 2
Servo pressure regulator as per DIN EN
88 class A group 2; EN 12067-1
Fine setting of gas and air pressure ratio
Flange connections with pipe threads as per ISO 7/1 or NPT

As this system has a modular design, we can offer individual solutions with valve
inspection system, pressure switches mini/maxi and pressure limiters. High flow values at low pressure difference.

Application
The servo pressure regulator permits optimum mixture formation in forced air
burners and premix burners; this applies to modulating and multi-stage variable
operating modes.
