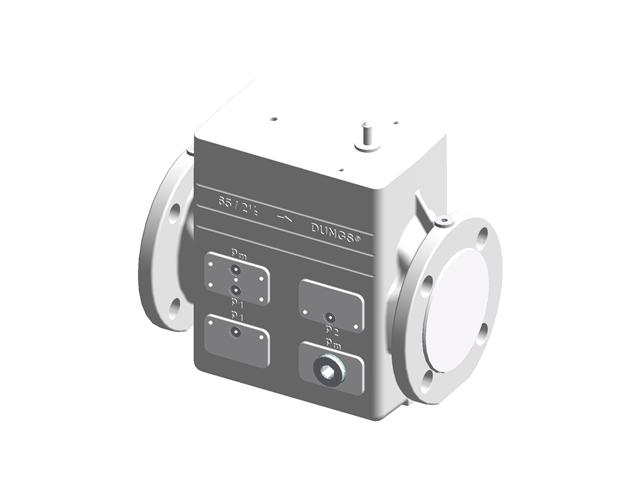

DUNGS VB-065-S Valve Body for the MBE (GasMultiBloc Generation E) system. Designed for high reliability in industrial gas trains.
The ValveBody-S is a housing for a spring-loaded safety shut-off valve. The valve is normally closed.
DN65 ValveBody prepared for 1 spring-loaded safety shut-off actuator.
- Safety shut-off valve acc. EN 161
- Maximum inlet pressure 70 kPa (700 mbar)
- Voltages: 100-240 VAC & 24 VDC
- Regulator function as per EN 88-1 & EN 88-3
- 3 sensors (PS) cover the outlet pressure range of (0-50 kPa)
- High flow rate with low pressure loss
- Biogas tested to max. 1.0 vol. % H2S
- Modular system
- Simple assembly
- Lightweight design
- Worldwide approvals
- Main volume adjustment (optional)
- Suitable for up to 100 % hydrogen
Approvals: EN 13611, EN 161; regulator functions per EN 88-1 & EN 88-3.
Max inlet pressure up to 70 kPa (700 mbar) on DN65-DN150 bodies.
Modular MBE platform with ValveBody, ValveDrive and PressureSensor compatibility.
Refer to the MBE datasheet and manuals for dimensions, wiring and commissioning guidance.
