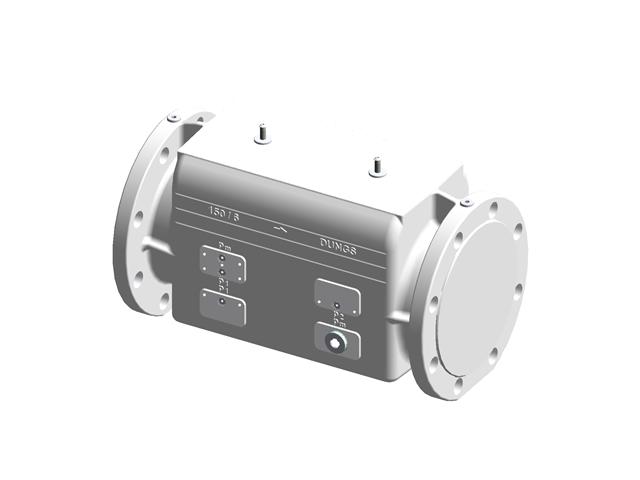

DUNGS VB-125 Valve Body for the MBE (GasMultiBloc Generation E) system. Designed for high reliability in industrial gas trains.
DN125 ValveBody prepared for 2 spring-loaded safety shut-off actuators.
The MBE multifunctional control combines the housing with two safety shutoff valves (ValveBody) and two electronic drives (ValveDrive) to actuate the safety valves and optionally, to control the outlet pressure.
- 2 safety shutoff valves acc. EN 161
- Maximum inlet pressure of up to 70 kPa (700 mbar)
- Voltages: 100-240 VAC & 24 VDC
- Regulator function as per EN 88-1 & EN 88-3
- 3 sensors (PS) cover the outlet pressure range of (0-50 kPa)
- High flow rate with low pressure loss
- Biogas tested to max. 1.0 vol. % H2S
- Modular system
- Simple assembly
- Lightweight design
- Worldwide approvals
Approvals: EN 13611, EN 161; regulator functions per EN 88-1 & EN 88-3.
Max inlet pressure up to 70 kPa (700 mbar) on DN65-DN150 bodies.
Modular MBE platform with ValveBody, ValveDrive and PressureSensor compatibility.
