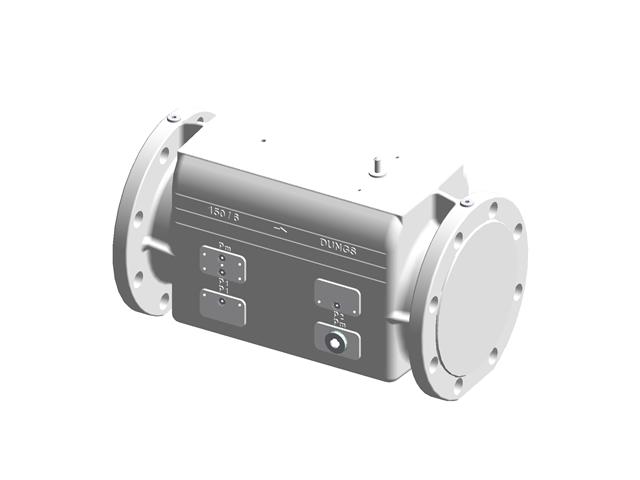

DUNGS VB-150-S Single Valve Body

DUNGS VB-150-S Valve Body for the MBE (GasMultiBloc Generation E) system. Designed for high reliability in industrial gas trains.

The ValveBody-S is a housing for a spring-loaded safety shut-off valve. The valve is normally closed.

DN150 ValveBody prepared for 1 spring-loaded safety shut-off actuator.

• Safety shut-off valve acc. EN 161
• Maximum inlet pressure 70 kPa (700 mbar)
• Voltages: 100-240 VAC & 24 VDC
• Regulator function as per EN 88-1 & EN 88-3
• 3 sensors (PS) cover the outlet pressure range of (0-50 kPa)
• High flow rate with low pressure loss
• Biogas tested to max. 1.0 vol. % H2S
• Modular system
• Simple assembly
• Lightweight design
• Worldwide approvals
• Main volume adjustment (optional)
• Suitable for up to 100 % hydrogen

Approvals: EN 13611, EN 161; regulator functions per EN 88-1 & EN 88-3.

Max inlet pressure up to 70 kPa (700 mbar) on DN65-DN150 bodies.

Modular MBE platform with ValveBody, ValveDrive and PressureSensor compatibility.

Refer to the MBE datasheet and manuals for dimensions, wiring and commissioning guidance.
