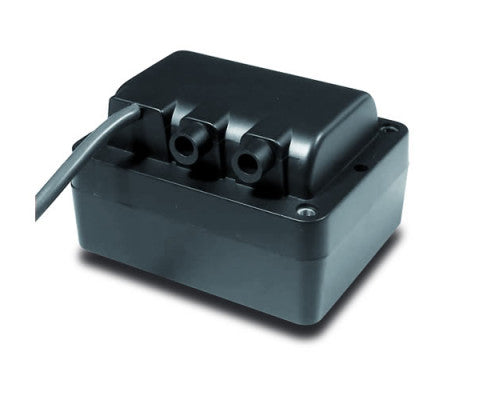

TRG 623PCUS - Compact Continuous Duty Single Outlet Transformer
Efficient 6kV/23mA Single Outlet Continuous Duty Inductive Transformer
The TRG 623PCUS offers continuous duty performance in a compact design, delivering reliable 6kV output at 23mA through a single outlet. Optimized for applications requiring constant moderate voltage supply with excellent thermal management.
Key Technical Specifications:
-
Output Voltage: 6kV (compact voltage rating)
-
Current Rating: 23mA (continuous duty optimized)
-
Operation Type: Continuous duty
-
Outlets: 1 high-voltage outlet
-
Supply Voltage: 230VAC, 50Hz (115VAC option available)
-
Supply Cable: 3 x 0.75 mm² conductors
-
Overall Length: 440mm (380mm useable length)
-
Weight: Approximately 2.8kg (robust construction)
-
Insulation Class: Class H windings
-
Encapsulation: Epoxy resin protection
-
Compliance: CE Approval certified
-
Mounting: Flush self-tapping screw outlet (13mm deep)
-
USA Option: 120VAC-60Hz with SPMAN plug ˜ 4mm with sleeve (23mm deep)
Perfect for continuous process applications, 24/7 operations requiring moderate voltage, and systems needing reliable constant power supply.
